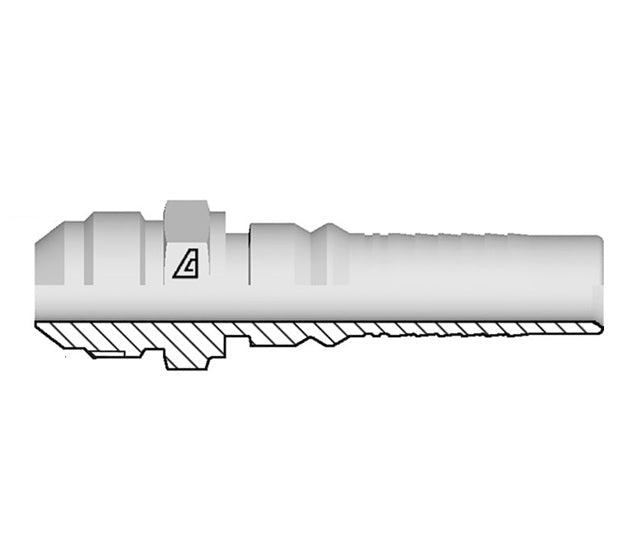

Y-2424-MJIC Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -24 Male JIC 37° Interlock x -24 Hose ID | Steel

Y-2424-MJIC Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -24 Male JIC 37° Interlock x -24 Hose ID | Steel

Save $18.74 Save $18.74
$65.60
$65.60 - $65.60
$65.60
$46.86
$46.86 - $46.86
$46.86

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male JIC 37° Interlock x Hose Barb
Specifications for Variant SKU: Y-2424-MJIC Kuriyama
Brand: Alfabiotech Evolution
Series: Y Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male JIC, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread C Cut-Off Factor Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-0808-MJIC -08 1/2" 12.7mm -08 3/4-16 28.0mm 19mm 0.34 lbs
Y-1212-MJIC -12 3/4" 19.0mm -12 1-1/16-12 37.0mm 32mm 0.40 lbs
Y-1616-MJIC -16 1" 25.4mm -16 1-5/16-12 41.0mm 36mm 0.63 lbs
Y-2020-MJIC -20 1-1/4" 31.8mm -20 1-5/8-12 45.7mm 46mm 1.06 lbs
Y-2424-MJIC -24 1-1/2" 38.1mm -24 1-7/8-12 50.0mm 50mm 1.42 lbs
Y-3232-MJIC -32 2" 50.8mm -32 2-1/2-12 58.9mm 65mm 1.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
