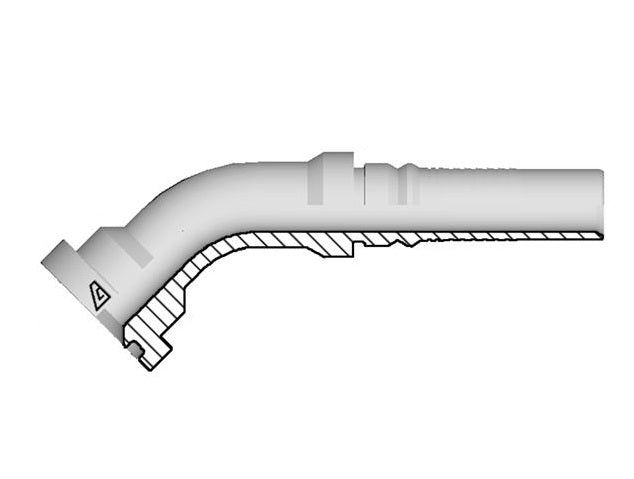

Z-3232-C624 Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Z-3232-C624 Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Save $110.22 Save $110.22
$385.77
$385.77 - $385.77
$385.77
$275.55
$275.55 - $275.55
$275.55

Kuriyama of America Inc.
Alfagomma | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | Hose Barb x Code 62 O-Ring Flange Interlock
Specifications for Variant SKU: Z-3232-C624 Kuriyama
Brand: Alfagomma
Series: Z Series
Shape (Orientation): 45 Degree
Ends Configuration: 2in Hose Barb, 2in Code 62 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
About Z Series Fittings:
  • Two-piece Interlock insert for Alfatech 6000 (AT6K) in 2" size only.
  • Requires both internal and external skiving and a ZF1 Interlock ferrule to perform properly.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
Z-3232-C624 32 2" 50.8mm 3.13" 79.4mm 141mm 63mm 6000 PSI 5.14 lbs
