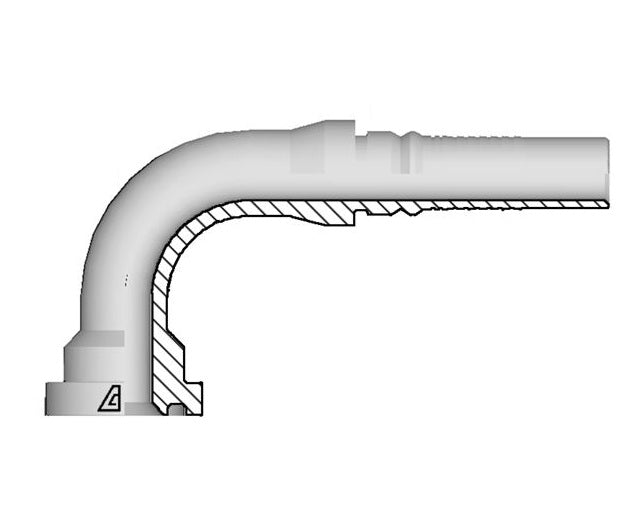

Z-3232-C629 Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Z-3232-C629 Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Save $121.69 Save $121.69
$425.92
$425.92 - $425.92
$425.92
$304.23
$304.23 - $304.23
$304.23

Kuriyama of America Inc.
Alfagomma | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | Hose Barb x Code 62 O-Ring Flange Interlock
Specifications for Variant SKU: Z-3232-C629 Kuriyama
Brand: Alfagomma
Series: Z Series
Shape (Orientation): 90 Degree
Ends Configuration: 2in Hose Barb, 2in Code 62 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
About Z Series Fittings:
  • Two-piece Interlock insert for Alfatech 6000 (AT6K) in 2" size only.
  • Requires both internal and external skiving and a ZF1 Interlock ferrule to perform properly.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
Z-3232-C629 32 2" 50.8mm 3.13" 79.4mm 132mm 138mm 6000 PSI 6.17 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
