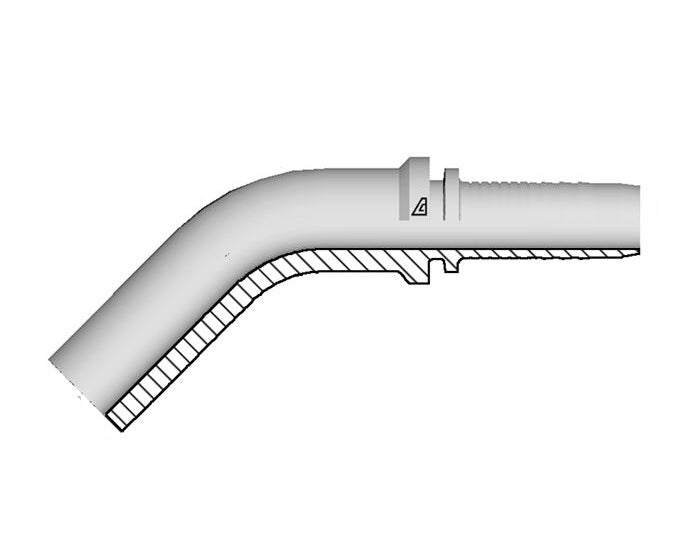

A-0410-MSP4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Bent Tube | DIN 2353 | -04 Hose ID x M10 Metric Standpipe | Steel

Save $3.02

$10.57

$10.57 - $10.57

$10.57

$7.55

$7.55 - $7.55

$7.55

Specifications for Variant SKU: A-0410-MSP4 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Hose Barb, 10mm Tube Stub
Material(s):	Steel
Applicable Specs & Approvals:	DIN 2353
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			GI Tube OD	C Cut-Off Factor	D Drop	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	(mm)	lbs/each
A-0406-MSP4	04	1/4"	6.4mm	6mm	50.1mm	28.0mm	0.06 lbs
A-0408-MSP4	04	1/4"	6.4mm	8mm	43.2mm	23.0mm	0.05 lbs
A-0410-MSPS	04	1/4"	6.4mm	10mm	48.0mm	24.0mm	0.04 lbs
A-0610-MSP4	06	3/8"	9.5mm	10mm	48.5mm	24.0mm	0.11 lbs
A-0612-MSP4	06	3/8"	9.5mm	12mm	55.5mm	28.0mm	0.11 lbs
A-0815-MSP4	08	1/2"	12.7mm	15mm	62.6mm	28.5mm	0.17 lbs
A-0816-MSP4	08	1/2"	12.7mm	16mm	63.3mm	32.0mm	0.18 lbs
A-0818-MSP4	08	1/2"	12.7mm	18mm	72.0mm	30.5mm	0.20 lbs
A-1018-MSP4	10	5/8"	15.9mm	18mm	64.0mm	32.0mm	0.20 lbs
A-1022-MSP4	10	5/8"	15.9mm	22mm	72.0mm	37.0mm	0.25 lbs
A-1222-MSP4	12	3/4"	19.0mm	22mm	74.3mm	37.0mm	0.27 lbs
A-1225-MSP4	12	3/4"	19.0mm	25mm	83.0mm	44.0mm	0.40 lbs
A-1625-MSP4	16	1"	25.4mm	25mm	102.3mm	55.0mm	0.44 lbs
