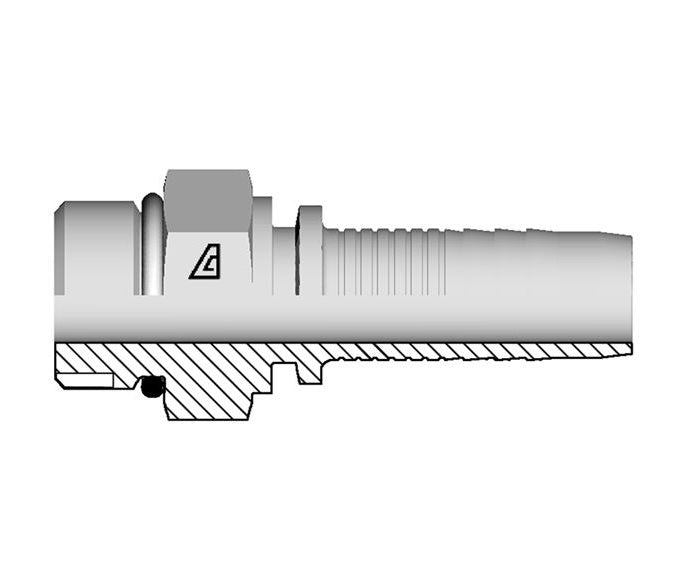

A-1010-MORB Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 Hose ID x -10 Male SAE O-Ring Boss | Steel

A-1010-MORB Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 Hose ID x -10 Male SAE O-Ring Boss | Steel

Save $3.54 Save $3.54
$12.40
$12.40 - $12.40
$12.40
$8.86
$8.86 - $8.86
$8.86

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male SAE O-Ring Boss
Specifications for Variant SKU: A-1010-MORB Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 5/8in Male O-Ring Boss
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0404-MORB 04 1/4" 6.4mm 04 7/16-20 20.3mm 14mm 0.04 lbs
A-0405-MORB 04 1/4" 6.4mm 05 1/2-20 21.3mm 16mm 0.05 lbs
A-0406-MORB 04 1/4" 6.4mm 06 9/16-18 22.3mm 17mm 0.06 lbs
A-0606-MORB 06 3/8" 9.5mm 06 9/16-18 23.3mm 19mm 0.08 lbs
A-0608-MORB 06 3/8" 9.5mm 08 3/4-16 24.3mm 22mm 0.12 lbs
A-0610-MORB 06 3/8" 9.5mm 10 7/8-14 26.8mm 27mm 0.16 lbs
A-0808-MORB 08 1/2" 12.7mm 08 3/4-16 25.1mm 22mm 0.14 lbs
A-0810-MORB 08 1/2" 12.7mm 10 7/8-14 27.6mm 27mm 0.19 lbs
A-0812-MORB 08 1/2" 12.7mm 12 1-1/16-12 32.1mm 32mm 0.28 lbs
A-1008-MORB 10 5/8" 15.8mm 08 3/4-16 27.6mm 22mm 0.23 lbs
A-1010-MORB 10 5/8" 15.8mm 10 7/8-14 27.6mm 24mm 0.25 lbs
A-1012-MORB 10 5/8" 15.8mm 12 1-1/16-12 32.1mm 32mm 0.27 lbs
A-1210-MORB 12 3/4" 19.0mm 10 7/8-14 28.1mm 27mm 0.24 lbs
A-1212-MORB 12 3/4" 19.0mm 12 1-1/16-12 32.6mm 32mm 0.31 lbs
A-1216-MORB 12 3/4" 19.0mm 16 1-5/16-12 35.7mm 38mm 0.44 lbs
A-1616-MORB 16 1" 25.4mm 16 1-5/16-12 35.4mm 38mm 0.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
