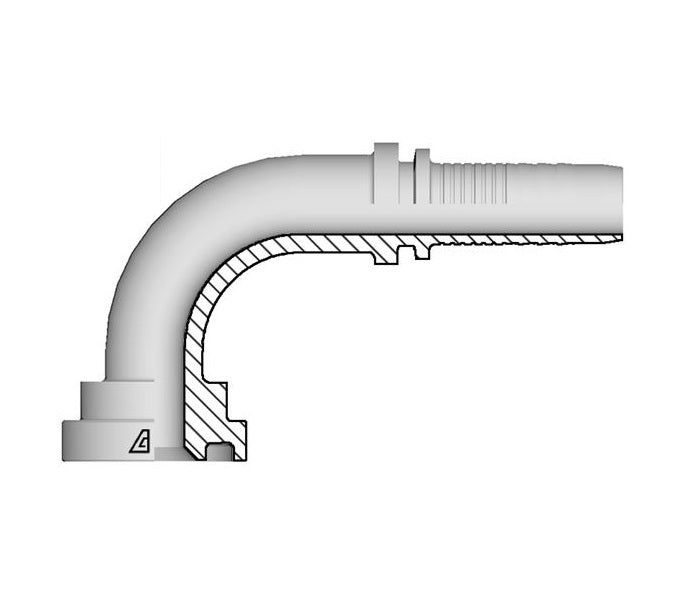

A-1212-C619 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -12 Hose ID x -12 Code 61 Flange | Steel

A-1212-C619 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -12 Hose ID x -12 Code 61 Flange | Steel

Save $11.53 Save $11.53
$40.36
$40.36 - $40.36
$40.36
$28.83
$28.83 - $28.83
$28.83

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | Hose Barb x Code 61 Flange
Specifications for Variant SKU: A-1212-C619 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Code 61 Flange
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
A-0808-C619 08 1/2" 12.7mm 1.19" 30.2mm 45.8mm 42.0mm 5000 PSI 0.29 lbs
A-0812-C619 08 1/2" 12.7mm 1.50" 38.1mm 45.3mm 51.0mm 5000 PSI 0.43 lbs
A-1012-C619 10 5/8" 15.9mm 1.50" 38.1mm 49.4mm 51.0mm 5000 PSI 0.55 lbs
A-1212-C619 12 3/4" 19.0mm 1.50" 38.1mm 57.7mm 60.0mm 5000 PSI 0.65 lbs
A-1216-C619 12 3/4" 19.0mm 1.75" 44.5mm 66.2mm 64.5mm 5000 PSI 0.71 lbs
A-1616-C619 16 1" 25.4mm 1.75" 44.5mm 70.6mm 67.0mm 5000 PSI 0.88 lbs
A-1620-C619 16 1" 25.4mm 2.00" 50.8mm 73.6mm 71.0mm 4000 PSI 1.02 lbs
A-2020-C619 20 1-1/4" 31.8mm 2.00" 50.8mm 88.0mm 84.0mm 4000 PSI 1.30 lbs
A-2024-C619 20 1-1/4" 31.8mm 2.38" 60.3mm 91.5mm 87.5mm 3000 PSI 1.48 lbs
A-2424-C619 24 1-1/2" 38.1mm 2.38" 60.3mm 104.8mm 91.0mm 3000 PSI 1.26 lbs
A-2432-C619 24 1-1/2" 38.1mm 2.81" 71.4mm 104.8mm 115.0mm 3000 PSI 2.66 lbs
A-3232-C619 32 2" 50.8mm 2.81" 71.4mm 127.2mm 130.0mm 3000 PSI 4.30 lbs
A-4040-C619 40 2-1/2" 63.5mm 3.31" 84.1mm 137.0mm 125.0mm 2500 PSI 4.80 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
