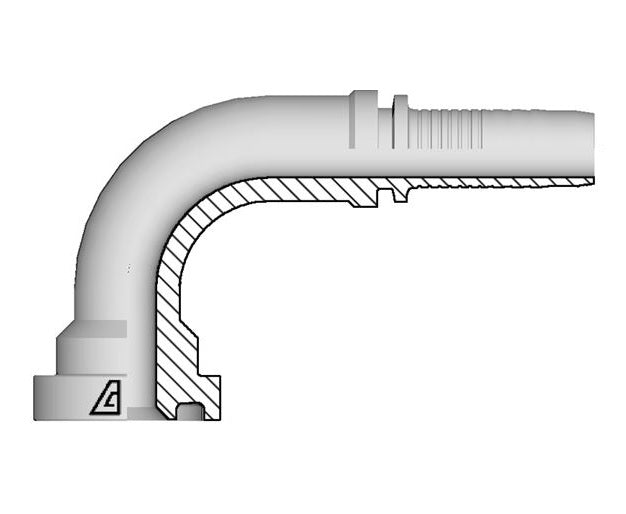

A-1616-C629 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -16 Hose ID x -16 Code 62 Flange | Steel

Save $16.08

$56.27

$56.27 - $56.27

$56.27

$40.19

$40.19 - $40.19

$40.19

Specifications for Variant SKU: A-1616-C629 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Hose Barb, 1in Code 62 Flange
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max. Working Pressure	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	(mm)	PSI	lbs/each
A-0808-C629	08	1/2"	12.7mm	1.25"	31.8mm	47.8mm	46mm	6000 PSI	0.33 lbs
A-0812-C629	08	1/2"	12.7mm	1.63"	41.3mm	47.8mm	54mm	6000 PSI	0.88 lbs
A-1212-C629	12	3/4"	19.0mm	1.63"	41.3mm	63.2mm	61mm	6000 PSI	0.62 lbs
A-1216-C629	12	3/4"	19.0mm	1.88"	47.6mm	63.2mm	66mm	6000 PSI	0.93 lbs
A-1616-C629	16	1"	25.4mm	1.88"	47.6mm	73.6mm	75mm	6000 PSI	1.05 lbs
A-1620-C629	16	1"	25.4mm	2.13"	54.0mm	77.6mm	78mm	6000 PSI	1.32 lbs
A-2020-C629	20	1-1/4"	31.8mm	2.13"	54.0mm	94.5mm	89mm	6000 PSI	1.59 lbs
A-2024-C629	20	1-1/4"	31.8mm	2.50"	63.5mm	98.0mm	94mm	6000 PSI	2.09 lbs
A-2424-C629	24	1-1/2"	38.1mm	2.50"	63.5mm	99.6mm	105mm	6000 PSI	2.57 lbs
A-2432-C629	24	1-1/2"	38.1mm	3.13"	79.4mm	114.7mm	123mm	6000 PSI	2.21 lbs
A-3232-C629	32	2"	50.8mm	3.13"	79.4mm	143.3mm	132mm	6000 PSI	2.32 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
