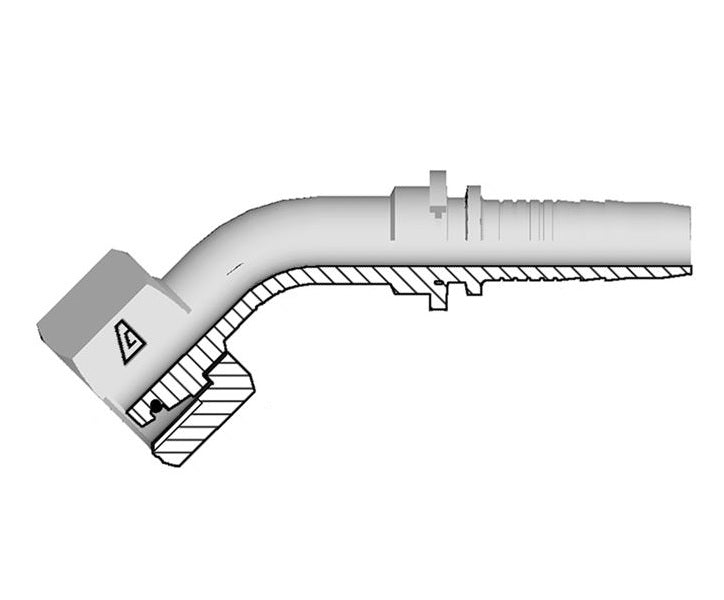

A-2452-FM4L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | -24 Hose ID x M52 Female Metric O-Ring Swivel 24° Seat | Steel

A-2452-FM4L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | -24 Hose ID x M52 Female Metric O-Ring Swivel 24° Seat | Steel

Save $36.83 Save $36.83
$128.90
$128.90 - $128.90
$128.90
$92.07
$92.07 - $92.07
$92.07

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | Hose Barb x Female Metric O-Ring Swivel 24° Seat
Specifications for Variant SKU: A-2452-FM4L Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 45 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Tube OD C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) (mm) lbs/each
A-0414-FM4L 04 1/4" 6.4mm M14x1.5 8mm 42.7mm 17.5mm 17mm 0.08 lbs
A-0416-FM4L 04 1/4" 6.4mm M16x1.5 10mm 42.7mm 20.0mm 19mm 0.10 lbs
A-0516-FM4L 05 5/16" 7.9mm M16x1.5 10mm 47.5mm 20.0mm 19mm 0.13 lbs
A-0616-FM4L 06 3/8" 9.5mm M16x1.5 10mm 46.8mm 20.0mm 19mm 0.14 lbs
A-0618-FM4L 06 3/8" 9.5mm M18x1.5 12mm 46.8mm 19.5mm 22mm 0.15 lbs
A-0822-FM4L 08 1/2" 12.7mm M22x1.5 15mm 55.0mm 21.0mm 27mm 0.24 lbs
A-1026-FM4L 10 5/8" 15.9mm M26x1.5 18mm 65.3mm 24.0mm 32mm 0.37 lbs
A-1230-FM4L 12 3/4" 19.0mm M30x2 22mm 69.4mm 32.0mm 36mm 0.54 lbs
A-1636-FM4L 16 1" 25.4mm M36x2 28mm 91.4mm 32.0mm 41mm 0.74 lbs
A-2045-FM4L 20 1-1/4" 31.8mm M45x2 35mm 135.5mm 45.0mm 50mm 1.32 lbs
A-2452-FM4L 24 1-1/2" 38.1mm M52x2 42mm 114.1mm 47.0mm 60mm 1.93 lbs
