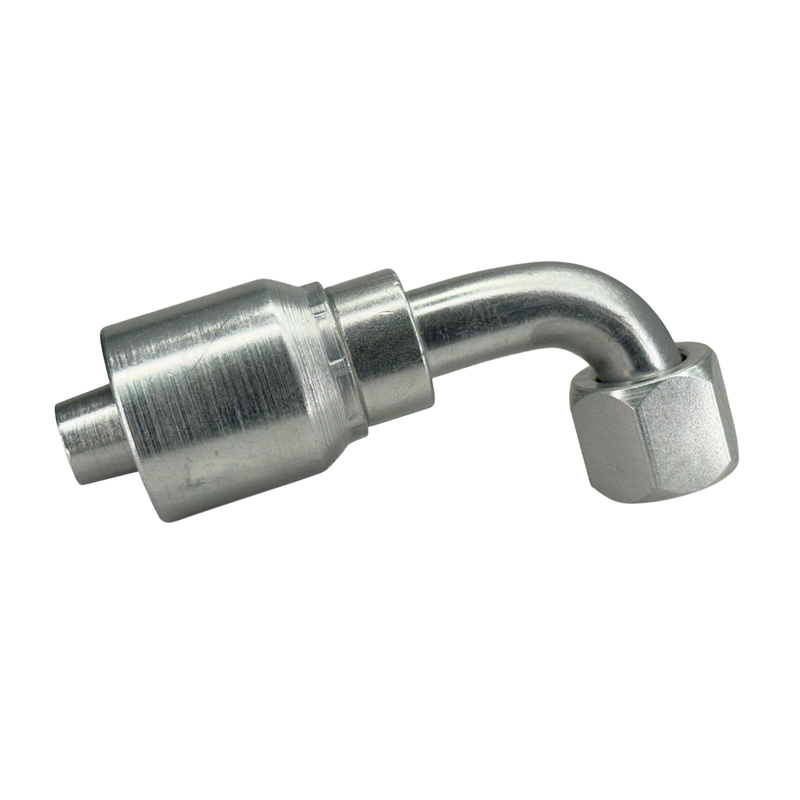

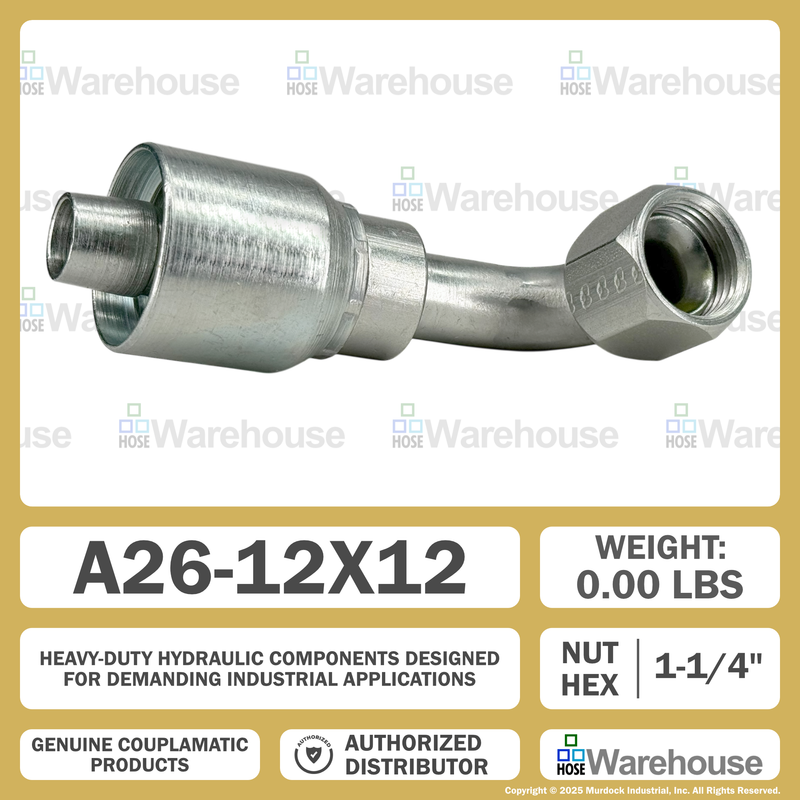

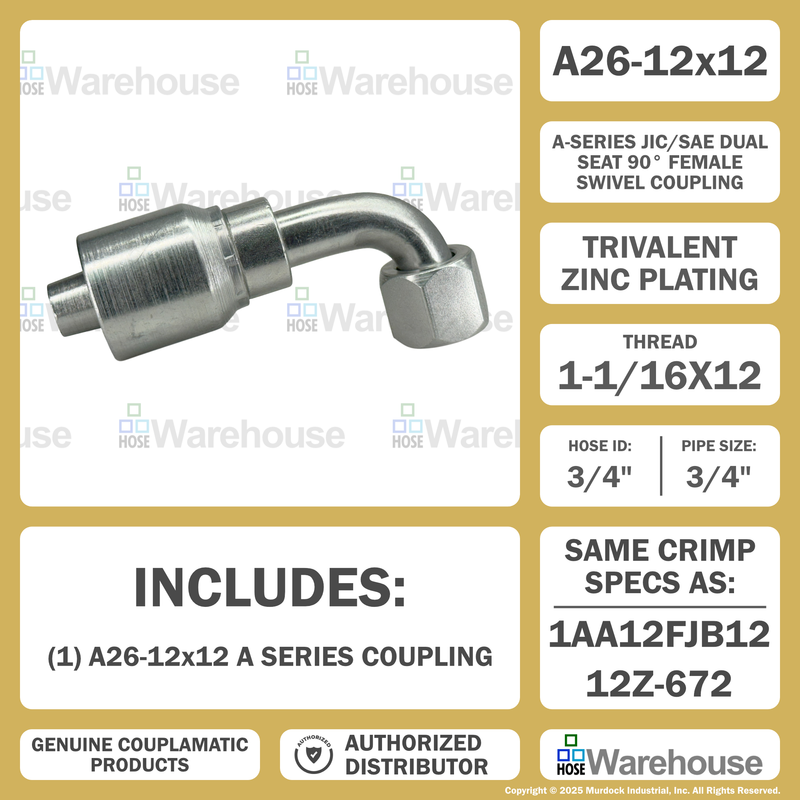

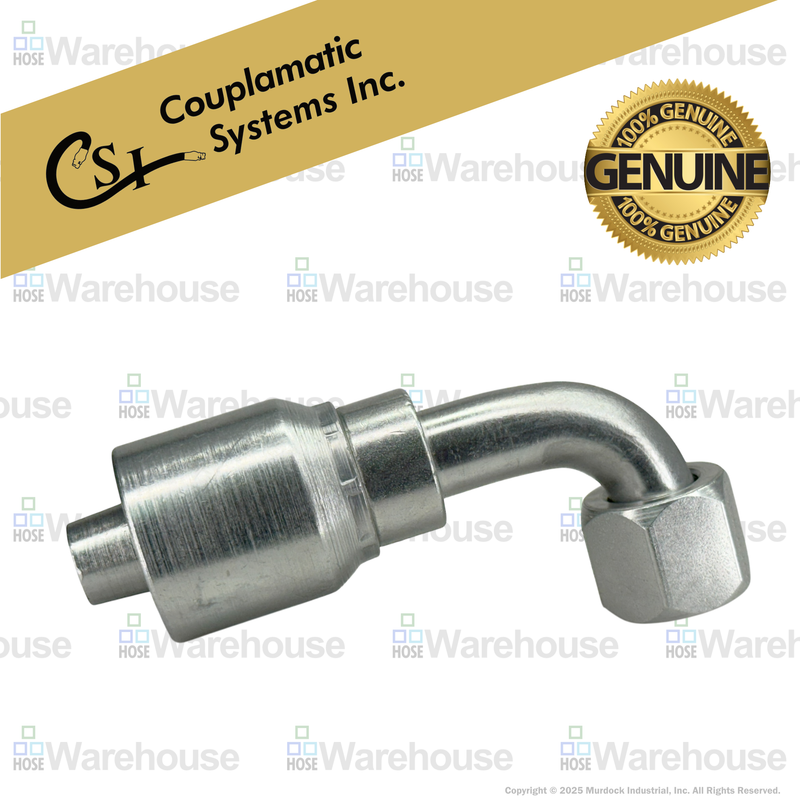

A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow
A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow

A26-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel | 90° Elbow

Save $13.19 Save $13.19
$32.98
$32.98 - $32.98
$32.98
$19.79
$19.79 - $19.79
$19.79

Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - 90° Female Swivel
Specifications for Variant SKU: A26-12x12 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

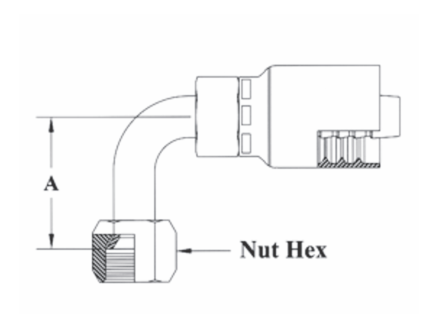

Part Number Hose ID Thread Size Tube OD A - Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A26-4x4 1/4" 7/16x20 1/4" 0.81" 9/16" 1AA4FJB4a 04Z-664
A26-4x5 1/4" 1/2x20 5/16" 0.83" 5/8" 1AA5FJB4 04Z-665
A26-4x6* 1/4" 9/16x18 3/8" 0.91" 11/16" 1AA6FJB4 04Z-666
A26-6x4 3/8" 7/16x20 1/4" 0.81" 9/16" - 06Z-664
A26-6x6* 3/8" 9/16x18 3/8" 0.91" 11/16" 1AA6FJB6 06Z-666
A26-6x8 3/8" 3/4x16 1/2" 1.15" 7/8" 1AA8FJB6a 06Z-668
A26-8x8 1/2" 3/4x16 1/2" 1.15" 7/8" 1AA8FJB8a 08Z-668
A26-8x10 1/2" 7/8x14 5/8" 1.23" 1" 1AA10FJB8a 08Z-670
A26-10x10 5/8" 7/8x14 5/8" 1.23" 1" 1AA10FJB10a 10Z-670
A26-10x12* 5/8" 1-1/16x12 3/4" 1.88" 1-1/4" 1AA12FJB10 10Z-672
A26-12x12* 3/4" 1-1/16x12 3/4" 1.88" 1-1/4" 1AA12FJB12 12Z-672
A26-12x16* 3/4" 1-5/16x12 1" 2.20" 1-1/2" - -
A26-16x16* 1" 1-5/16x12 1" 2.20" 1-1/2" 1AA16FJB16 16Z-676
A26-20x20 1-1/4" 1-5/8x12 1-1/4" 3.31" 2" 1AV20FJB20 20Z-677

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
