A37-4x8 Couplamatic A Series Coupling - DIN Light Universal Seat - Female Swivel - 1/4" Hose ID - M14x1.5 Thread

A37-4x8 by Couplamatic | A Series Coupling | 1/4" Hose ID x M14x1.5 Thread DIN Light Universal Seat Female Swivel | Straight

Save $5.89 Save $5.89
$14.72
$14.72 - $14.72
$14.72
$8.83
$8.83 - $8.83
$8.83

Couplamatic Systems Inc.
A Series - DIN Light Universal Seat - Female Swivel
Specifications for Variant SKU: A37-4x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: L08 Female DIN, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
A Series — Bite to the Wire

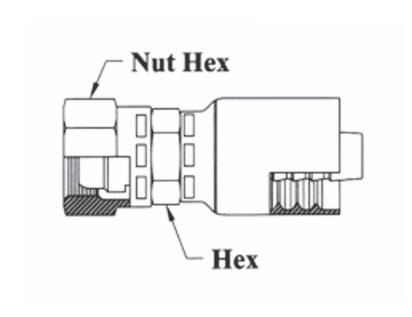

A37 A Series — DIN Light Universal Seat, Female Swivel, Straight

A37 is the DIN Light Universal Seat, Female Swivel, Straight configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?
Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A37-4x8 1/4" 8mm M14x1.5 5/8" 11/16" 1A6DL4 04Z-08C
A37-4x10 1/4" 10mm M16x1.5 5/8" 3/4" 1A8DL4 04Z-10C
A37-6x10 3/8" 10mm M16x1.5 11/16" 3/4" 1A8DL6 06Z-10C
A37-6x12 3/8" 12mm M18x1.5 11/16" 7/8" 1A10DL6 06Z-12C
A37-8x15 1/2" 15mm M22x1.5 7/8" 1-1/16" 1A12DL8 08Z-15C
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
