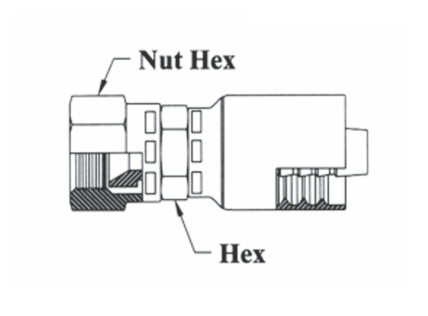

A40-8x8 Couplamatic A Series Coupling - JIS 30° Flare Parallel Pipe - Female Swivel - 1/2" Hose ID - G-1/2-14 Thread

A40-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x G-1/2-14 Thread JIS 30° Flare Parallel Pipe Female Swivel | Straight

Save $5.90 Save $5.90
$14.75
$14.75 - $14.75
$14.75
$8.85
$8.85 - $8.85
$8.85

Couplamatic Systems Inc.
A Series - JIS 30° Flare Parallel Pipe - Female Swivel
Specifications for Variant SKU: A40-8x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIS, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.
Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A40-4x4 1/4" 1/4" G-1/4-19 5/8" 3/4" 1A4JF4 04Z-04L
A40-6x6 3/8" 3/8" G-3/8-19 11/16" 7/8" 1A6JF6 06Z-06L
A40-8x8 1/2" 1/2" G-1/2-14 7/8" 1-1/16" 1A8JF8 08Z-08L

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
