A46-12x12 Couplamatic A Series Coupling - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel - 3/4" Hose ID - G-3/4-14 Thread - 3/4" BSPP

A46-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x G-3/4-14 Thread 60° Cone Female Swivel | 3/4" BSPP | 90° Elbow

Save $21.10 Save $21.10
$52.75
$52.75 - $52.75
$52.75
$31.65
$31.65 - $31.65
$31.65

Couplamatic Systems Inc.
A Series - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel
Specifications for Variant SKU: A46-12x12 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
A Series — Bite to the Wire

A46 A Series — 60° Cone, BSPP, Female Swivel, 90° Elbow

A46 is the 60° Cone, BSPP, Female Swivel, 90° Elbow configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?

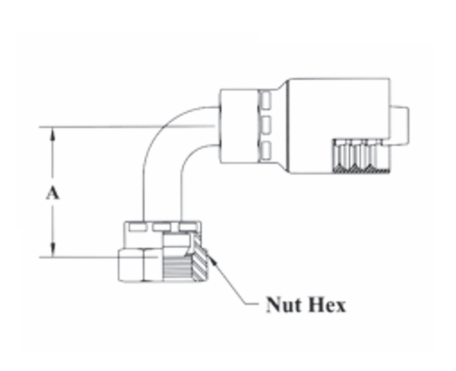

Part Number Hose ID BSPP Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A46-4x4 1/4" 1/4" G-1/4-19 1.50" 3/4" 1A4BFB4 04Z-74P
A46-6x6 3/8" 3/8" G-3/8-19 1.60" 7/8" 1A6BFB6 06Z-76P
A46-8x8 1/2" 1/2" G-1/2-14 1.89" 1" 1A8BFB8 08Z-78P
A46-12x12 3/4" 3/4" G-3/4-14 2.55" 1-1/4" 1A12BFB12 12Z-82P
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
