AC300EZSWIV by Dixon Valve | Swivel Cam & Groove Coupler | Type C | 3" Coupler x 3" Hose Shank | Aluminum

Name: AC300EZSWIV by Dixon Valve | Swivel Cam & Groove Coupler | Type C | 3" Coupler x 3" Hose Shank | Aluminum
Brand: Dixon
SKU: AC300EZSWIV Dixon
Price: 206.63 USD
Availability: InStock

Save $137.75

$344.38

$344.38 - $344.38

$344.38

$206.63

$206.63 - $206.63

$206.63

Dixon Valve

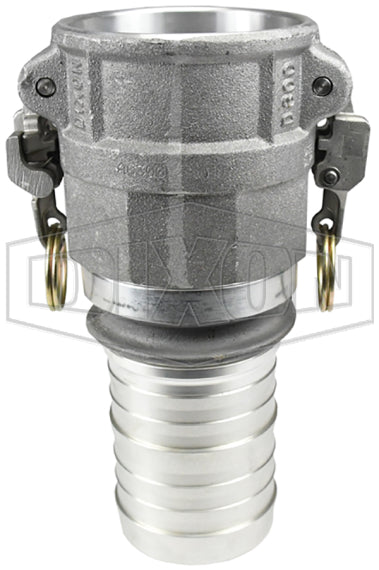

Swivel Coupling Cam & Groove | Type C Coupler | Coupler x Hose Shank

Live swivel is capable of 360-degree rotation under pressure.

Specifications for Variant SKU: AC300EZSWIV Dixon
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel

Features:
Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications. Couplers inculde EZ Boss-Lock cam arms. Gasket: nitrile rubber.
Note:
Hose shanks are suitable for use with King Crimp sleeves and ferrules.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
AC200EZSWIV	RC200EZSWIV	2"	250 PSI
AC300EZSWIV	RC300EZSWIV	3"	125 PSI 150 PSI with King Crimp ferrule system
AC400EZSWIV	RC400EZSWIV	4"	100 PSI 150 PSI with King Crimp ferrule system
