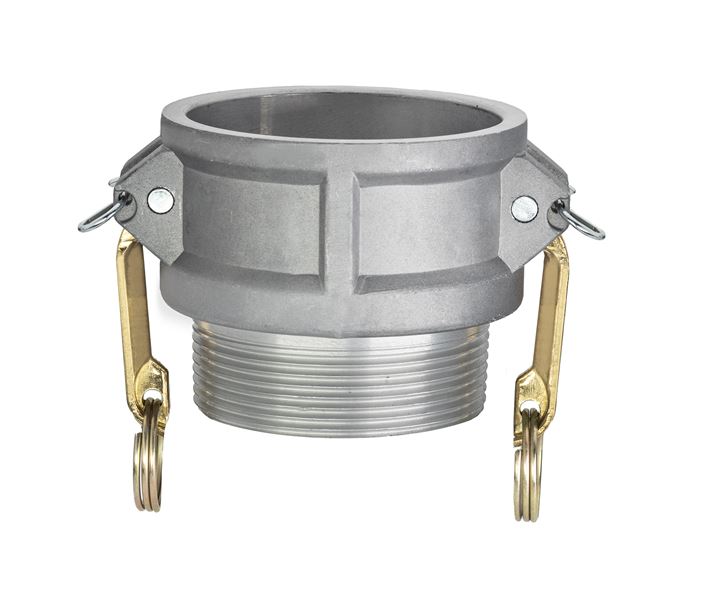

AL-B1000 by Kuriyama | AL-B Series | Part B | Cam & Groove Adapter | 10" Coupler x 10" Male NPT | Aluminum

AL-B1000 by Kuriyama | AL-B Series | Part B | Cam & Groove Adapter | 10" Coupler x 10" Male NPT | Aluminum

Save $71.67 Save $71.67
$521.86
$521.86 - $521.86
$521.86
$450.19
$450.19 - $450.19
$450.19

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-B Series | Part B | Coupler x Male NPT | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-B1000 Kuriyama
Series: AL-B Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 10in Female Cam & Groove, 10in Male NPT
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • Easy to install and disassemble.
  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Coupler Size
(in)		 Thread Size
Female NPT
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight Each
(lbs)
AL-B050 1/2" 1/2" 250 PSI B108-92 356 0.18 lbs
AL-B075 3/4" 3/4" 250 PSI B85 Grade 383 0.24 lbs
AL-B100 1" 1" 250 PSI B85 Grade 383 0.36 lbs
AL-B125 1-1/4" 1-1/4" 250 PSI B108-92 356 0.62 lbs
AL-B150 1-1/2" 1-1/2" 250 PSI B85 Grade 383 0.70 lbs
AL-B200 2" 2" 250 PSI B85 Grade 383 0.86 lbs
AL-B2015 2" 1-1/2" 250 PSI B85 Grade 383 0.84 lbs
AL-B2030 2" 3" 250 PSI B85 Grade 383 1.43 lbs
AL-B250 2-1/2" 2-1/2" 150 PSI B85 Grade 383 1.02 lbs
AL-B300 3" 3" 150 PSI B85 Grade 383 1.56 lbs
AL-B3020 3" 2" 150 PSI B85 Grade 383 1.57 lbs
AL-B3040 3" 4" 150 PSI B85 Grade 383 2.45 lbs
AL-B400 4" 4" 150 PSI B85 Grade 383 2.42 lbs
AL-B4030 4" 3" 150 PSI B85 Grade 383 2.31 lbs
AL-B500 5" 5" 75 PSI B108-92 356 3.34 lbs
AL-B600 6" 6" 75 PSI B85 Grade 383 4.984 lbs
AL-B800* 8" 8" 50 PSI B108-92 356 8.03 lbs
AL-B1000 10" 10" 50 PSI B26, Grade 713 12.13 lbs
HDAL-B801* 8" 8" 50 PSI B26, Grade 713 10.54 lbs

* To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is our AL-B800. If the measurement is more than 9" it is our HDAL-B801.
