AL-C600 by Kuriyama | AL-C Series | Part C | Cam & Groove Fitting | Tri-Couple | 6" Coupler x 6" Hose Barb | Aluminum

Save $28.94

$151.84

$151.84 - $151.84

$151.84

$122.90

$122.90 - $122.90

$122.90

Kuriyama of America Inc.

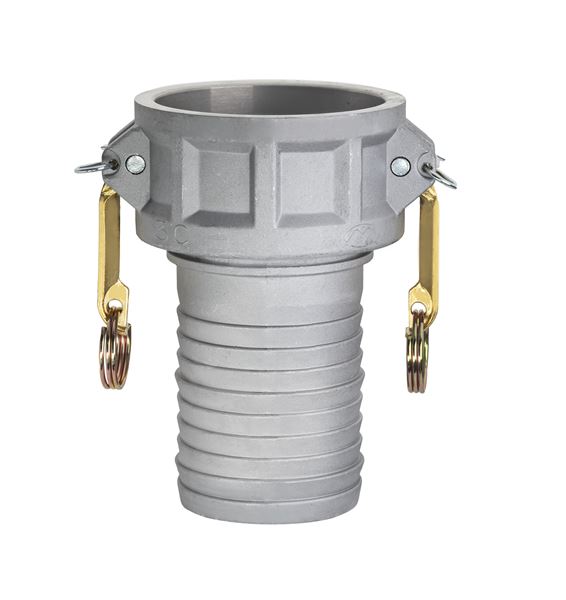

Cam & Groove (Camlock) Fitting | AL-C Series | Part C | Coupler x Hose Barb | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: AL-C600 Kuriyama
Series:	AL-C Series
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	6in Female Cam & Groove, 6in Hose Barb
Material(s):	Aluminum, Brass
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.

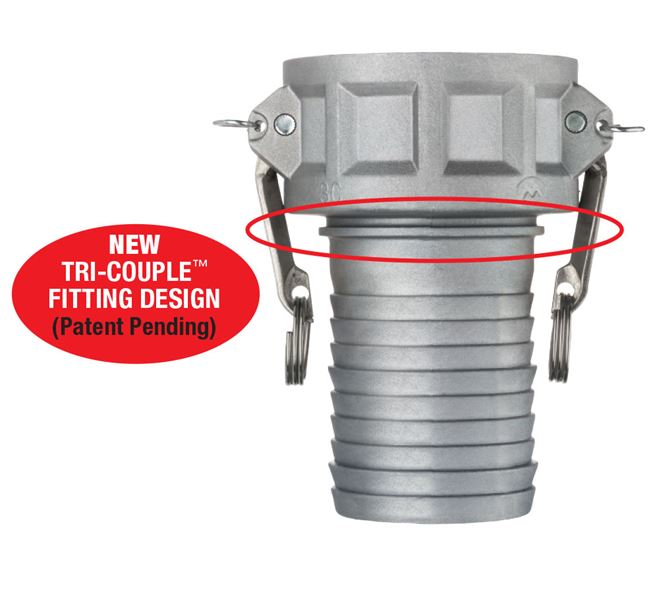

Tri-Couple™ design available in 1-1/2", 2", 2-1/2", 3", 4", 6" sizes.
Hose Barbs especially designed for easy assembly with Tigerflex™ type hoses.
Kuriyama offers two 8" coupling styles in aluminum.*
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles which results in less wear on connecting parts.
8" & 10" sizes supplied with four brass handles.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Forged brass handles.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	Coupler Size (in)	Thread Size Female NPT (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
AL-C050	1/2"	1/2"	250 PSI	B108-92 356	0.20 lbs
AL-C075	3/4"	3/4"	250 PSI	B85 Grade 383	0.26 lbs
AL-C100	1"	1"	250 PSI	B85 Grade 383	0.42 lbs
AL-C125	1-1/4"	1-1/4"	250 PSI	B108-92 356	0.68 lbs
AL-C150**	1-1/2"	1-1/2"	250 PSI	B85 Grade 383	0.74 lbs
AL-C200**	2"	2"	250 PSI	B85 Grade 383	0.98 lbs
AL-C2015	2"	1-1/2"	250 PSI	B85 Grade 383	0.93 lbs
AL-C250**	2-1/2"	2-1/2"	150 PSI	B85 Grade 383	1.28 lbs
AL-C300**	3"	3"	150 PSI	B85 Grade 383	2.20 lbs
AL-C3020	3"	2"	150 PSI	B85 Grade 383	1.74 lbs
AL-C3040	3"	4"	150 PSI	B85 Grade 383	2.29 lbs
AL-C400**	4"	4"	150 PSI	B85 Grade 383	3.16 lbs
AL-C4030	4"	3"	150 PSI	B85 Grade 383	2.94 lbs
AL-C500	5"	5"	75 PSI	B108-92 356	3.88 lbs
AL-C600**	6"	6"	75 PSI	B85 Grade 383	7.70 lbs
AL-C800*	8"	8"	50 PSI	B108-92 356	10.83 lbs
AL-C1000	10"	10"	50 PSI	B26, Grade 713	16.67 lbs
HDAL-C801*	8"	8"	50 PSI	B26, Grade 713	12.58 lbs

** Designates Tri-Couple Fitting.

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-B800. If the measurement is more than 9" it is HDAL-B801.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
