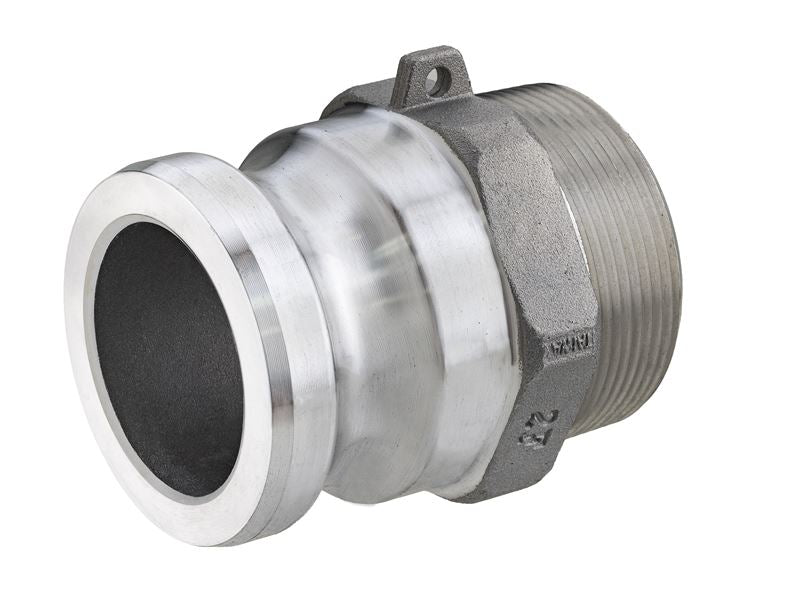

AL-F2015 by Kuriyama | AL-F Series | Part F | Cam & Groove Adapter | 2" Adapter x 1-1/2" Male NPT | Aluminum

AL-F2015 by Kuriyama | AL-F Series | Part F | Cam & Groove Adapter | 2" Adapter x 1-1/2" Male NPT | Aluminum

Save $8.06 Save $8.06
$22.72
$22.72 - $22.72
$22.72
$14.66
$14.66 - $14.66
$14.66

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-F Series | Part F | Adapter x Male NPT | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-F2015 Kuriyama
Series: AL-F Series
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 2in Male Cam & Groove, 1-1/2in Male NPT
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Kuriyama offers two 8" coupling styles in aluminum.*
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Adapter
Size
(in)		 Male NPT
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
AL-F050 1/2" 1/2" 250 PSI B211 Grade 6063 0.14 lbs
AL-F075 3/4" 3/4" 250 PSI B85 Grade 383 0.16 lbs
AL-F100 1" 1" 250 PSI B85 Grade 383 0.20 lbs
AL-F125 1-1/4" 1-1/4" 250 PSI B108-92 356 0.34 lbs
AL-F150 1-1/2" 1-1/2" 250 PSI B85 Grade 383 0.46 lbs
AL-F200 2" 2" 250 PSI B85 Grade 383 0.68 lbs
AL-F2015 2" 1-1/2" 250 PSI B85 Grade 383 0.64 lbs
AL-F2030 2" 3" 250 PSI B85 Grade 383 1.06 lbs
AL-F250 2-1/2" 2-1/2" 150 PSI B85 Grade 383 0.96 lbs
AL-F300 3" 3" 150 PSI B85 Grade 383 1.30 lbs
AL-F3020 3" 2" 150 PSI B85 Grade 383 0.86 lbs
AL-F3040 3" 4" 150 PSI B85 Grade 383 1.78 lbs
AL-F400 4" 4" 150 PSI B85 Grade 383 2.32 lbs
AL-F4030 4" 3" 150 PSI B85 Grade 383 1.57 lbs
AL-F500 5" 5" 75 PSI B108-92 356 2.94 lbs
AL-F600 6" 6" 75 PSI B85 Grade 383 3.92 lbs
AL-F800 8" 8" 50 PSI B108-92 356 7.94 lbs
AL-F1000 10" 10" 50 PSI B26, Grade 713 10.58 lbs
HDAL-F801 8" 8" 50 PSI B26, Grade 713 9.95 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-F800. If the measurement is more than 9" it is HDAL-F801.
