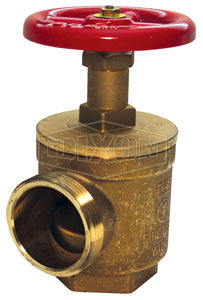

AV251 Dixon Forged Brass Global Angle Hose Valve - 2-1/2" Female NPT x 2-1/2" Male NST(NH)

Name: AV251 Dixon Forged Brass Global Angle Hose Valve - 2-1/2" Female NPT x 2-1/2" Male NST(NH)
Brand: Dixon
SKU: AV251 Dixon
Price: 226.6 USD
Availability: InStock

Save $28.31

$254.91

$254.91 - $254.91

$254.91

$226.60

$226.60 - $226.60

$226.60

Dixon Fire Fittings
Angle Hose Valve - Forged Brass Global Angle Hose Valve

To be used with a fire hose rack assembly, or as a fire department outlet connection

Quantity

Specifications for Variant SKU: AV251 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	2-1/2in Female NPT, 2-1/2in Male NST
Material(s):	Brass, Steel

Features:
Underwriters Listed and Factory Mutual approved. Red Steel Handwheel maximum operating pressure: 300 PSI at 70°F (21°C)

Part Number	Description	Weight (Lbs.)
AV151	1-1/2" Female NPT x 1-1/2" Male NST (NH)	3.8100
AV251	2-1/2" Female NPT x 2-1/2" Male NST (NH)	8.9200
AV251NYC	2-1/2" Female NPT x 2-1/2" Male NYC	9.0000
AV251NYFD	2-1/2" Female NPT x 2-1/2" Male NYFD	9.0000

AVF151	1-1/2" Female NPT x 1-1/2" Female NPT	3.8200
AVF251	2-1/2" Female NPT x 2-1/2" Female NPT	9.1600
Replacement Parts
AV151-WR	Red Handwheel for AV151	0.2150
AV251-WR	Red Handwheel for AV251	1.0000
AV251-N	Replacement Handwheel Nut for 1-1/2" and 2-1/2" Valves	0.0200

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
