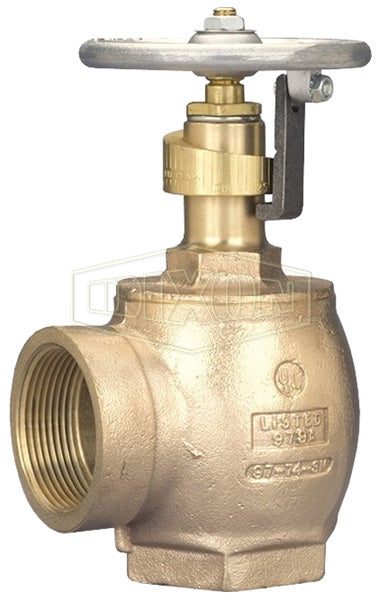

AVAPRF250 Dixon Cast Brass Domestic Adjustable Pressure Restricting Angle Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Outlet

AVAPRF250 Dixon Cast Brass Domestic Adjustable Pressure Restricting Angle Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Outlet

Save $417.26 Save $417.26
$1,043.15
$1,043.15 - $1,043.15
$1,043.15
$625.89
$625.89 - $625.89
$625.89

Dixon Fire Fittings
Domestic Adjustable Pressure Restricting Angle Valves

Used when flowing water pressure needs to be controlled.
Specifications for Variant SKU: AVAPRF250 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Preset orifices restrict the volume of water thereby lowering the pressure of the flowing water; NFPA requires restricting valves where inlet pressure exceeds 100 PSI.
  • Restricting valve has no effect on the static pressure of a system.
  • Can be manually by-passed if required by opening the valve fully, this is accomplished by breaking the breakable link, which allows the valve stem to rise to the full open position.
  • Breakable link also serves as an indication of valve condition and status; if valve is opened without breaking the link it will resume its previous position and no resetting is necessary.
  • Restricts inlet pressure from 70 PSI up to a maximum of 175 PSI.
  • Restricts down to outlet pressures of 65, 80 or 100 PSI, outlet pressures may be set below 65 PSI when authorized by the local authority having jurisdiction.
  • Restricts only under flow conditions.
  • Setting charts are packed with valve.
  • UL listed.
  • New York City Board of Standards and Appeals, approval # MEA 54-07-E.
  • Maximum operating pressure: up to 175 PSI.
  • Aluminum handwheel.
Part Number Inlet Outlet Weight
(Lbs.)
AVAPR150F 1-1/2" Female NPT 1-1/2" Male NST (NH) 6.3000
AVAPR250F 2-1/2" Female NPT 2-1/2" Male NST (NH) 13.5800
AVAPRF150 1-1/2" Female NPT 1-1/2" Female NPT 5.0000
AVAPRF250 2-1/2" Female NPT 2-1/2" Female NPT 12.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
