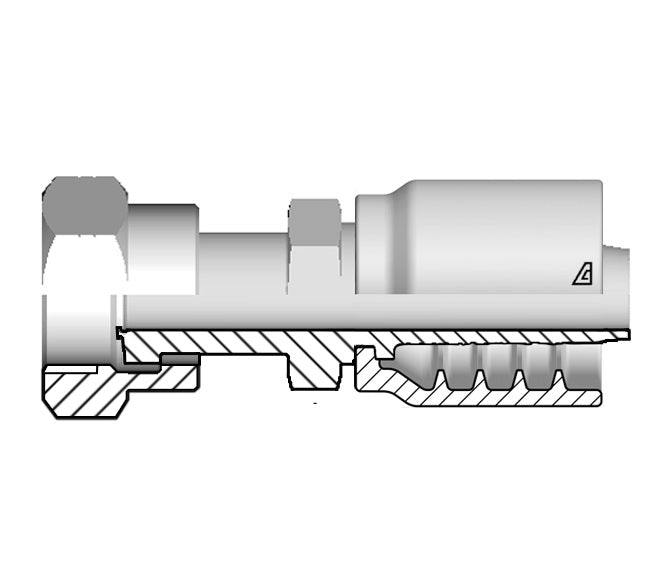

B-0404-FOFS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | -04 Hose ID x -04 Female O-Ring Face Seal | Steel

B-0404-FOFS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | -04 Hose ID x -04 Female O-Ring Face Seal | Steel | Pack of 5

Save $2.86 Save $2.86
$10.01
$10.01 - $10.01
$10.01
$7.15
$7.15 - $7.15
$7.15

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | Hose Barb x Female O-Ring Face Seal
Specifications for Variant SKU: B-0404-FOFS Kuriyama | 5 |
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female O-Ring Face Seal
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FOFS 04 1/4" 6.4mm 04 9/16-18 27.3mm 14mm 17mm 0.14 lbs
B-0406-FOFS 04 1/4" 6.4mm 06 11/16-16 30.3mm 17mm 22mm 0.20 lbs
B-0408-FOFS 04 1/4" 6.4mm 08 13/16-16 35.3mm 22mm 24mm 0.27 lbs
B-0506-FOFS 05 5/16" 7.9mm 06 11/16-16 30.3mm 17mm 22mm 0.21 lbs
B-0606-FOFS 06 3/8" 9.5mm 06 11/16-16 30.3mm 17mm 22mm 0.22 lbs
B-0608-FOFS 06 3/8" 9.5mm 08 13/16-16 35.3mm 22mm 24mm 0.28 lbs
B-0806-FOFS 08 1/2" 12.7mm 06 11/16-16 32.1mm 19mm 22mm 0.27 lbs
B-0808-FOFS 08 1/2" 12.7mm 08 13/16-16 36.1mm 22mm 24mm 0.31 lbs
B-0810-FOFS 08 1/2" 12.7mm 10 1-14 39.6mm 24mm 30mm 0.40 lbs
B-0812-FOFS 08 1/2" 12.7mm 12 1-3/16-12 42.1mm 30mm 36mm 0.62 lbs
B-1010-FOFS 10 5/8" 15.9mm 10 1-14 39.6mm 24mm 30mm 0.44 lbs
B-1012-FOFS 10 5/8" 15.9mm 12 1-3/16-12 42.1mm 30mm 36mm 0.64 lbs
B-1210-FOFS 12 3/4" 19.0mm 10 1-14 40.1mm 27mm 30mm 0.53 lbs
B-1212-FOFS 12 3/4" 19.0mm 12 1-3/16-12 42.6mm 30mm 36mm 0.68 lbs
B-1216-FOFS 12 3/4" 19.0mm 16 1-7/16-12 48.6mm 36mm 41mm 0.95 lbs
B-1612-MOFS 16 1" 25.4mm 12 1-3/16-12 45.4mm 32mm 36mm 0.89 lbs
B-1616-FOFS 16 1" 25.4mm 16 1-7/16-12 49.4mm 36mm 41mm 1.02 lbs
B-1620-FOFS 16 1" 25.4mm 20 1-11/16-12 50.4mm 41mm 50mm 1.38 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
