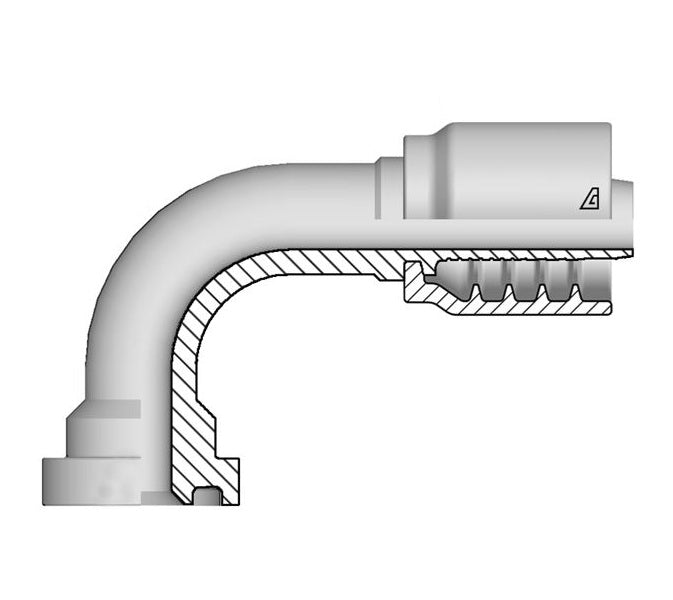

B-0812-C629 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -08 Hose ID x -12 Code 62 Flange | Steel

Save $16.93

$59.25

$59.25 - $59.25

$59.25

$42.32

$42.32 - $42.32

$42.32

Specifications for Variant SKU: B-0812-C629 Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Code 62 Flange, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust. 6000 PSI
Material:
Steel


Part Number	Hose ID Size			Flange		Q	C Cut-Off Factor	D Drop	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	(in)	(mm)	(mm)	(mm)	lbs/each
B-0808-C629	08	1/2"	12.7mm	08	1/2"	31.8mm	47.8mm	46mm	0.43 lbs
B-0812-C629	08	1/2"	12.7mm	12	3/4"	41.3mm	47.8mm	54mm	0.67 lbs
B-1012-C629	10	5/8"	15.9mm	12	3/4"	41.3mm	49.9mm	55mm	0.67 lbs
B-1212-C629	12	3/4"	19.0mm	12	3/4"	41.3mm	63.2mm	61mm	0.92 lbs
B-1216-C629	12	3/4"	19.0mm	16	1"	47.6mm	63.2mm	66mm	1.09 lbs
B-1616-C629	16	1"	25.4mm	16	1	47.6mm	73.6mm	75mm	1.36 lbs
B-1620-C629	16	1"	25.4mm	20	1-1/4	54.0mm	77.6mm	78mm	1.60 lbs
