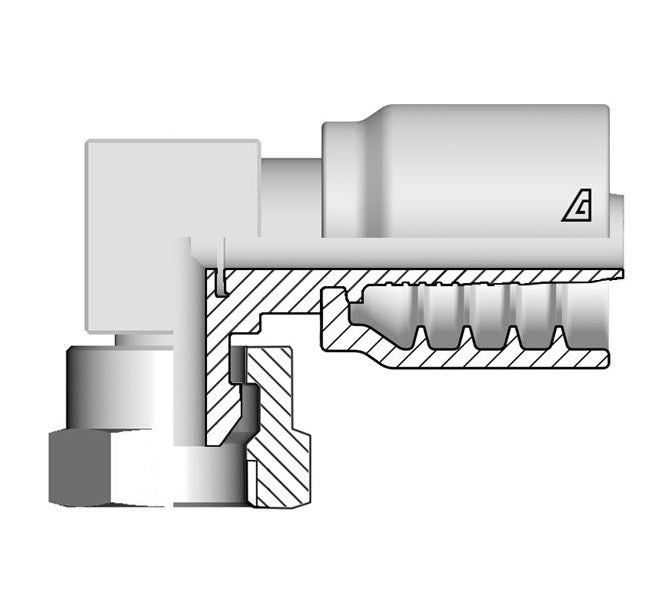

B-1212-FBC9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -12 Hose ID x -12 Female BSPP 60° Cone | Steel

B-1212-FBC9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -12 Hose ID x -12 Female BSPP 60° Cone | Steel

Save $13.48 Save $13.48
$47.19
$47.19 - $47.19
$47.19
$33.71
$33.71 - $33.71
$33.71

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Female BSPP 60° Cone
Specifications for Variant SKU: B-1212-FBC9 Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Female BSPP
Material(s): Steel
Special Properties: Compact Elbow
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size (in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FBC9 04 3/8" 6.4mm 04 1/4-19 16.8mm 19.5mm 19mm 0.13 lbs
B-0606-FBC9 06 3/8" 9.5mm 06 3/8-19 19.5mm 21.5mm 22mm 0.16 lbs
B-0808-FBC9 08 1/2" 12.7mm 08 1/2-14 22.2mm 22.5mm 27mm 0.27 lbs
B-1212-FBC9 12 3/4" 19.0mm 12 3/4-14 26.7mm 31.0mm 32mm 0.66 lbs
B-1616-FBC9 16 1" 25.4mm 16 1-11 34.5mm 27.5mm 38mm 0.96 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
