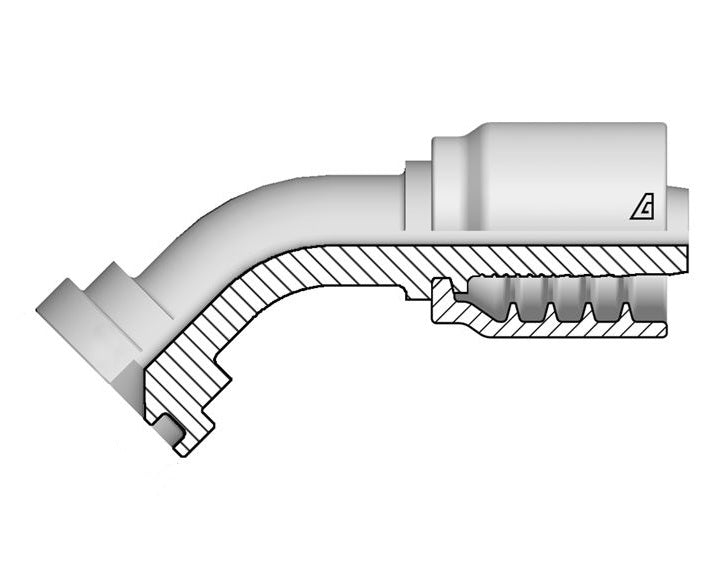

B-1616-C614 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | -16 Hose ID x -16 Code 61 Flange | Steel

B-1616-C614 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | -16 Hose ID x -16 Code 61 Flange | Steel

Save $19.87 Save $19.87
$69.54
$69.54 - $69.54
$69.54
$49.67
$49.67 - $49.67
$49.67

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | Hose Barb x Code 61 Flange
Specifications for Variant SKU: B-1616-C614 Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Code 61 Flange, 1in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
  • 3000 PSI
Material:
  • Steel
Part Number Hose ID Size Flange Q C
Cut-Off Factor		 D
Drop		 Weight
DashSize (in.) (mm) DashSize (in) (mm) (mm) (mm) lbs/each
B-0808-C614 08 1/2" 12.7mm 08 1/2" 30.2mm 43.7mm 22.0mm 0.35 lbs
B-0812-C614 08 1/2" 12.7mm 12 3/4" 38.1mm 50.4mm 26.0mm 0.48 lbs
B-1012-C614 10 5/8" 15.9mm 12 3/4" 38.1mm 55.1mm 26.0mm 0.53 lbs
B-1212-C614 12 3/4" 19.0mm 12 3/4" 38.1mm 63.8mm 32.0mm 0.73 lbs
B-1216-C614 12 3/4" 19.0mm 16 1" 44.5mm 68.0mm 29.0mm 0.84 lbs
B-1616-C614 16 1" 25.4mm 16 1" 44.5mm 72.8mm 33.5mm 1.08 lbs
B-1620-C614 16 1" 25.4mm 20 1-1/4" 50.8mm 72.3mm 36.0mm 1.16 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
