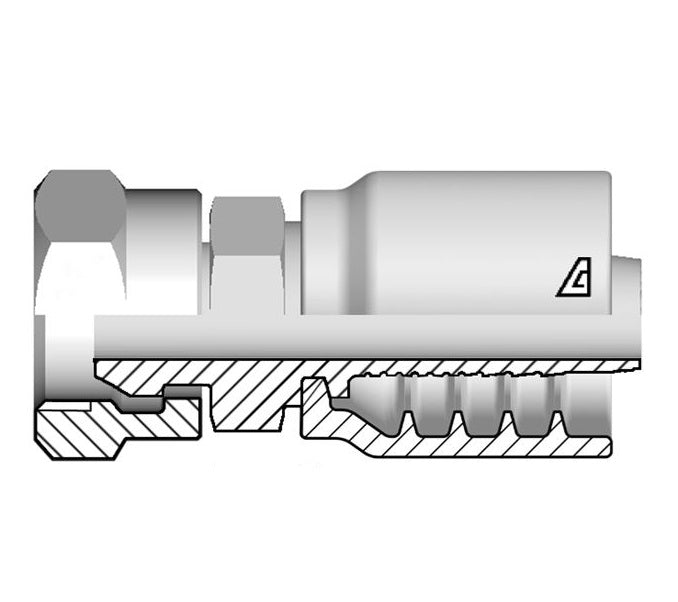

B-1616-FPMS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Female NPSM | Steel

B-1616-FPMS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Female NPSM | Steel

Save $12.52 Save $12.52
$43.83
$43.83 - $43.83
$43.83
$31.31
$31.31 - $31.31
$31.31

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female NPSM
Specifications for Variant SKU: B-1616-FPMS Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Female NPSM
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FPMS 04 1/4" 6.4mm 04 1/4-18 24.3mm 17mm 19mm 0.17 lbs
B-0606-FPMS 06 3/8" 9.5mm 06 3/8-18 25.8mm 19mm 22mm 0.23 lbs
B-0808-FPMS 08 1/2" 12.7mm 08 1/2-14 27.6mm 22mm 27mm 0.31 lbs
B-1212-FPMS 12 3/4" 19.0mm 12 3/4-14 28.6mm 27mm 32mm 0.63 lbs
B-1616-FPMS 16 1" 25.4mm 16 1-11-1/2 35.4mm 36mm 38mm 0.88 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
