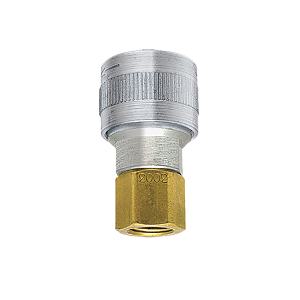

B-4TLF3-S Breco by Foster | Quick Disconnect | TL Series | 1/2" Automatic Socket x 3/8" Female NPT Thread | Straight | Aluminum/Steel/Brass

B-4TLF3-S Breco by Foster | Quick Disconnect | TL Series | 1/2" Automatic Socket x 3/8" Female NPT Thread | Straight | Aluminum/Steel/Brass

Save $14.34 Save $14.34
$35.85
$35.85 - $35.85
$35.85
$21.51
$21.51 - $21.51
$21.51

Foster Quick Disconnects - SHD & TL Series Automatic 1/2" Sockets - Breco
Specifications for Variant SKU: B-4TLF3-S ZSi-Foster
Brand: Breco
Series: TL Series
Shape (Orientation): Straight
Material(s): Aluminum, Steel, Brass
Interchange:
  • Interchanges with Schrader Standard & Heavy Duty
Features:
  • Engineered for speedy coupling and uncoupling. To lock - push in; To unlock - rotate sleeve 1/8 turn.
  • Designed to protect against accidental uncoupling. A variety of types and sizes are available to meet specific needs.
  • Standard Twist-Lock couplings are ideal for low to medium air flows, such as air tools.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Temperature Range (Nitrile seal): -10 deg. to +165 deg. F
  • Locking Device: Twist-Lock
  • Vacuum Service: 27 HG
Materials:
  • Aluminum bodies and zinc plated steel sleeves. Buna-N seals. Brass adapters.
Operation:
  • Automatic Push to Connect; Twist-to-release
Female CouplerPart Number Brand Male PlugPart Number Size Description
SHD4015 Foster - 1/4" Aluminum/Steel/Brass
SHD5005 Foster SHD53 3/8" Aluminum/Steel/Brass
B-4TLF3-S Breco B-TL4F3-S 3/8" Aluminum/Steel/Brass
SHD5205 Foster - 1/2" Aluminum/Steel/Brass
B-4TLF4-S Breco - 1/2" Aluminum/Steel/Brass
SHD5405 Foster - 3/4" Aluminum/Steel/Brass
B-4TLF6-S Breco - 3/4" Aluminum/Steel/Brass
