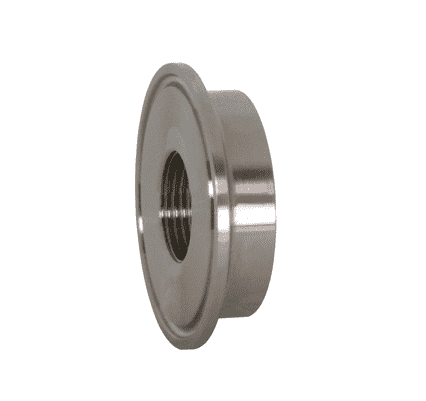

B23BMP-R300 Dixon Valve 316L Stainless Steel Sanitary Thermometer Cap - 3" Tube OD - 3/4" NPT Tap Size

Name: B23BMP-R300 Dixon Valve 316L Stainless Steel Sanitary Thermometer Cap - 3" Tube OD - 3/4" NPT Tap Size
Brand: Dixon
SKU: B23BMP-R300 Dixon
Price: 33.76 USD
Availability: InStock

Save $4.22

$37.98

$37.98 - $37.98

$37.98

$33.76

$33.76 - $33.76

$33.76

Dixon Sanitary Fittings Sanitary Clamp Fitting Cap - Thermometer Cap

Quantity

Specifications for Variant SKU: B23BMP-R300 Dixon
Ends Configuration:	3in Sanitary Clamp End, 3/4in Female NPT
Material(s):	316L Stainless Steel

Material:
316L Stainless Steel

Part Number	Tube OD	Tap Size	Dimensions				Weight(Lbs.)
Part Number	Tube OD	Tap Size	A	B	C	D	Weight(Lbs.)
B23BMP-R7518	3/4"	1/8" NPT	-	-	-	1/8"	1.0000
B23BMP-R100	1"	1/2" NPT	1.99"	1.50"	0.63"	1/2"	0.2900
B23BMP-R10025	1"	1/4" NPT	-	-	-	1/4"	-
B23BMP-R150	1-1/2"	3/4" NPT	1.99"	1.50"	0.63"	3/4"	0.2400
B23BMP-R15025	1-1/2"	1/4" NPT	-	-	-	1/4"	0.2500
B23BMP-R15050	1-1/2"	1/2" NPT	-	-	-	1/2"	-
B23BMP-R150100	1-1/2"	1" NPT	-	-	-	1"	-
B23BMP-R150125	1-1/2"	1/8" NPT	-	-	-	1/8"	-
B23BMP-R200	2"	3/4" NPT	2.52"	2.00"	0.63"	3/4"	0.5115
B23BMP-R200BLK (Blank)	2"	-	-	-	-	-	0.5115
B23BMP-R20025	2"	1/4" NPT	-	-	-	1/4"	0.8500
B23BMP-R20050	2"	1/2" NPT	-	-	-	1/2"	0.5115
B23BMP-R200100	2"	1" NPT	-	-	-	1"	-
B23BMP-R200150	2"	1-1/2" NPT	-	-	-	1-1/2"	-
B23BMP-R250	1-1/2"	3/4" NPT	3.05"	2.50"	0.63"	3/4"	0.8400
B23BMP-R300	3"	3/4" NPT	3.58"	3.00"	0.63"	3/4"	1.2550
B23BMP-R30050	3"	1/2" NPT	-	-	-	1/2"	1.2600
B23BMP-R400	4"	3/4" NPT	4.68"	4.00"	0.63"	3/4"	2.3500
