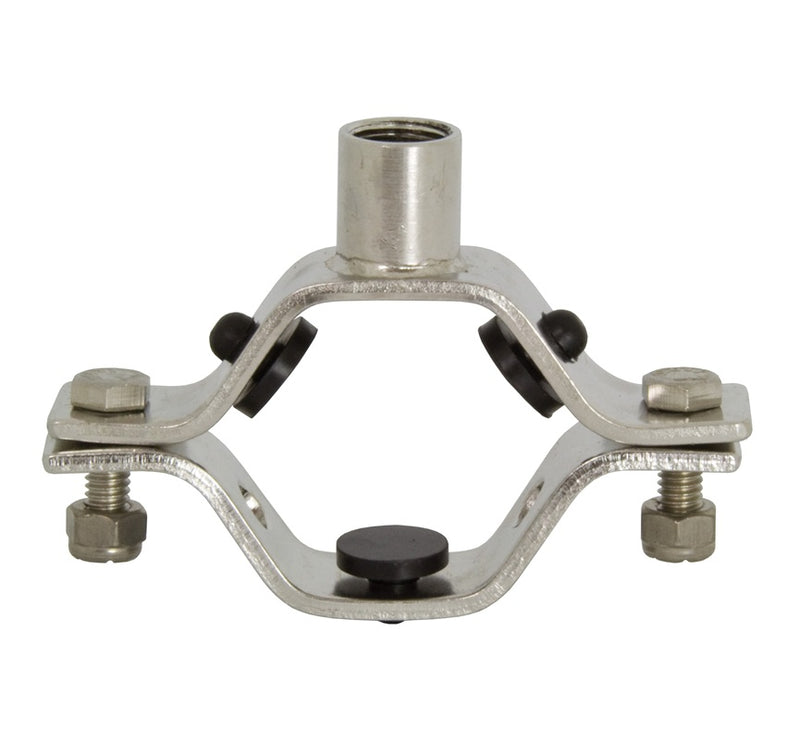

B24RGC-G400 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets and Coupler - 4" Tube OD

B24RGC-G400 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets and Coupler - 4" Tube OD

Save $16.61 Save $16.61
$41.53
$41.53 - $41.53
$41.53
$24.92
$24.92 - $24.92
$24.92

Dixon Sanitary Fittings Sanitary Hex Hanger with Nitrile Grommets and Coupler - 304 Stainless Steel

Operating temperatures up to 230°F (110°C)
Specifications for Variant SKU: B24RGC-G400 Dixon
Features:
  • Coupler has 3/8" NPT.
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Weight (Lbs.)
B24RGC-G75 1/2" - 3/4" 0.4300
B24RGC-G100 1" 0.4300
B24RGC-G150 1-1/2" 0.4950
B24RGC-G200 2" 0.6050
B24RGC-G250 2-1/2" 0.6550
B24RGC-G300 3" 0.7500
B24RGC-G400 4" 3.0000
B24RGC-G600 6" 1.2150
