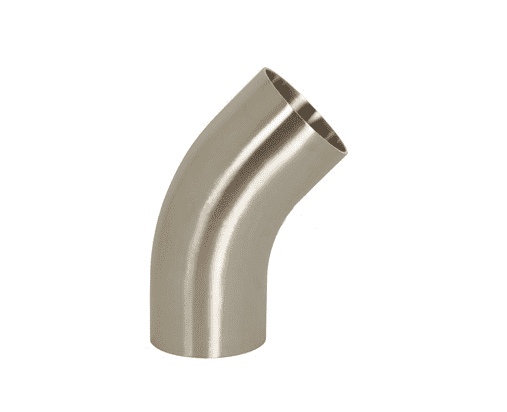

B2KS-R100P Dixon Valve 316L Stainless Steel Sanitary Polished 45 deg. Weld Elbow with Tangent - 1" Tube OD

Save $0.27 Save $0.27
Original price $6.07
Original price $6.07 - Original price $6.07
Original price $6.07
Current price $5.80
$5.80 - $5.80
Current price $5.80

Dixon Sanitary Fittings Sanitary Polished Weld Elbow - Polished 45° Weld Elbow with Tangents - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

3A sanitary finish ID and OD.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B2KS-R100P Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1in Weld End, 1in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions

Wall Thickness Weight (Lbs.)
A R OD ID
B2KS-R50P 1/2" 2.25" 1.13" 0.50" 0.37" 0.065" 0.1200
B2KS-R75P 3/4" 2.25" 1.13" 0.75" 0.62" 0.065" 0.2100
B2KS-R100P 1" 1.19" 1.50" 1.00" 0.87" 0.065" 0.1200
B2KS-R150P 1-1/2" 1.63" 2.25" 1.50" 1.37" 0.065" 0.2650
B2KS-R200P 2" 2.31" 3.00" 2.00" 1.87" 0.065" 0.4600
B2KS-R250P 2-1/2" 3.00" 3.75" 2.50" 2.37" 0.065" 0.7800
B2KS-R300P 3" 3.69" 4.50" 3.00" 2.87" 0.065" 1.1900
B2KS-R400P 4" 4.81" 6.00" 4.00" 3.83" 0.083" 2.6300
