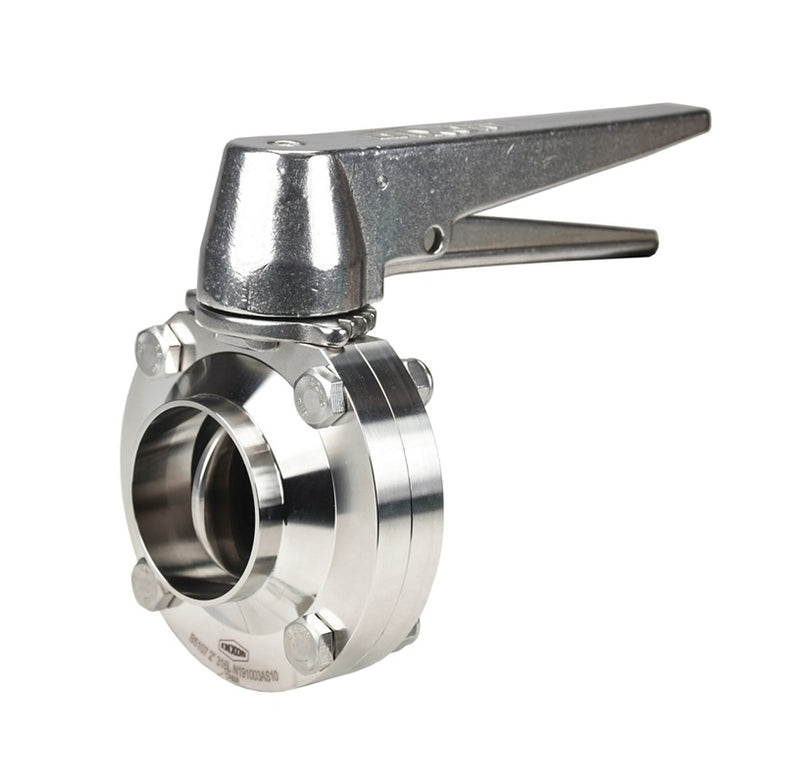

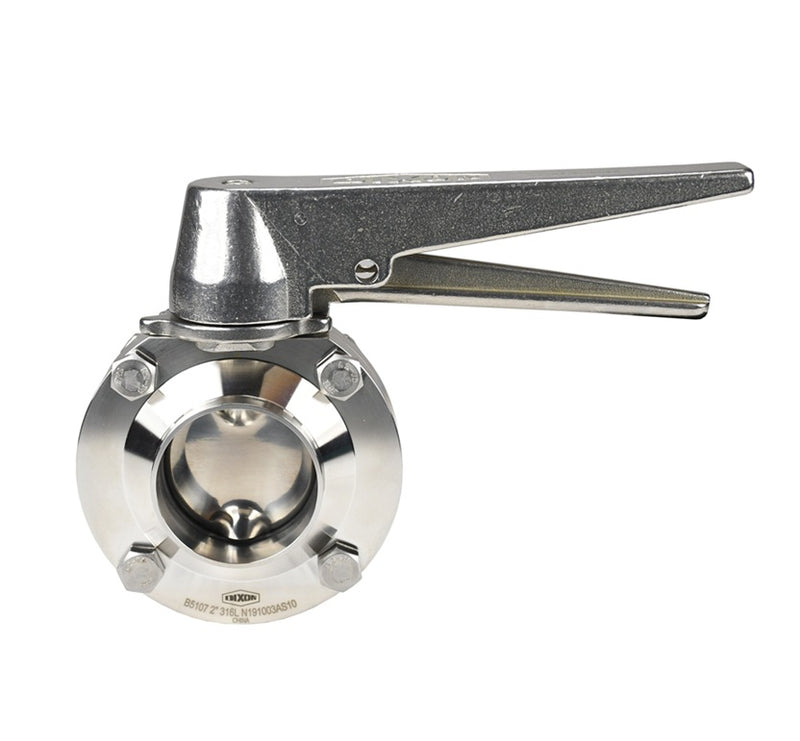

B5107E250BB-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - EPDM Seats

Name: B5107E250BB-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - EPDM Seats
Brand: Dixon
SKU: B5107E250BB-C Dixon
Price: 253.21 USD
Availability: InStock

Save $168.81

$422.02

$422.02 - $422.02

$422.02

$253.21

$253.21 - $253.21

$253.21

Dixon Sanitary Valves
Weld End Butterfly Valve with Trigger Handle [C] | 316L Stainless Steel with EPDM Seats

Specifications for Variant SKU: B5107E250BB-C Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Weld End, 2-1/2in Weld End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	EPDM

Features:
Robust disc stem. Bi-directional flow. Self lubricating seal. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification. 100% hydraulic tested/inspected.
Materials:
Product contact material: 316L stainless steel Seat: EPDM Seat lubricant: MOLYKOTE® 111
Specifications:
Vacuum rating: 0.4 inches Hg at 68°F (20°C) Operating temperature range: 15°F to 200°F (-9°C to 93°C)


Part Number	Size	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)
B5107E050BB-C	1/2"	1.87"	0.90"	3.10"	2.60"	5.90"	0.37"	0.50"
B5107E075BB-C	3/4"	1.87"	0.90"	3.10"	2.60"	5.90"	0.62"	0.75"
B5107E100BB-C	1"	1.87"	0.90"	3.10"	2.60"	5.90"	0.87"	1.00"
B5107E150BB-C	1-1/2"	1.87"	0.90"	3.10"	2.60"	5.90"	1.37"	1.50"
B5107E200BB-C	2"	2.06"	0.90"	3.90"	3.00"	5.90"	1.87"	2.00"
B5107E250BB-C	2-1/2"	2.12"	0.90"	4.60"	3.40"	5.90"	2.37"	2.50"
B5107E300BB-C	3"	2.50"	1.20"	5.20"	3.50"	5.90"	2.87"	3.00"
B5107E400BB-C	4"	3.18"	1.20"	6.70"	4.30"	5.90"	3.83"	4.00"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
