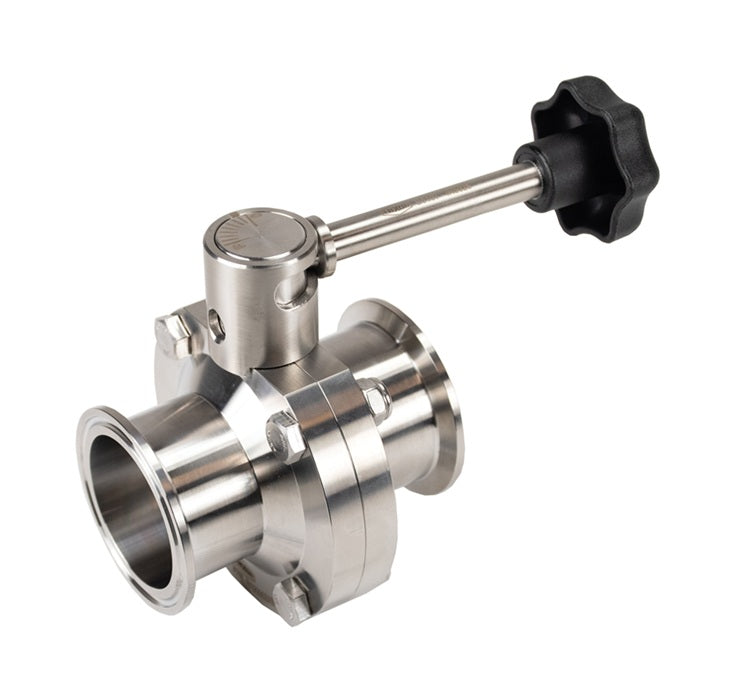

B5107S150CC-B Dixon Valve 1-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Infinite Handle - Silicone Seats

Name: B5107S150CC-B Dixon Valve 1-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Infinite Handle - Silicone Seats
Brand: Dixon
SKU: B5107S150CC-B Dixon
Price: 192.27 USD
Availability: InStock

Save $128.18

$320.45

$320.45 - $320.45

$320.45

$192.27

$192.27 - $192.27

$192.27

Dixon Sanitary Valves
Clamp End Butterfly Valve with Infinite Handle [B] | 316L Stainless Steel with Silicone Seats

Specifications for Variant SKU: B5107S150CC-B Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	Silicone

Features:
Robust disc stem. Bi-directional flow. Self lubricating seal. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification. 100% hydraulic tested/inspected.
Materials:
Product contact material: 316L stainless steel Seat: Silicone Seat lubricant: MOLYKOTE® 111
Specifications:
Vacuum rating: 0.4 inches Hg at 68°F (20°C) Operating temperature range: 15°F to 200°F (-9°C to 93°C)

Part Number	Size	Dimensions
Part Number	Size	A (in)	B (in)	C (in)	D (in)	E (in)
B5107S050CC-B	1/2"	3.50"	0.90"	3.10"	2.60"	4.90"
B5107S075CC-B	3/4"	3.50"	0.90"	3.10"	2.60"	4.90"
B5107S150CC-B	1-1/2"	3.50"	0.90"	3.10"	2.60"	4.90"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
