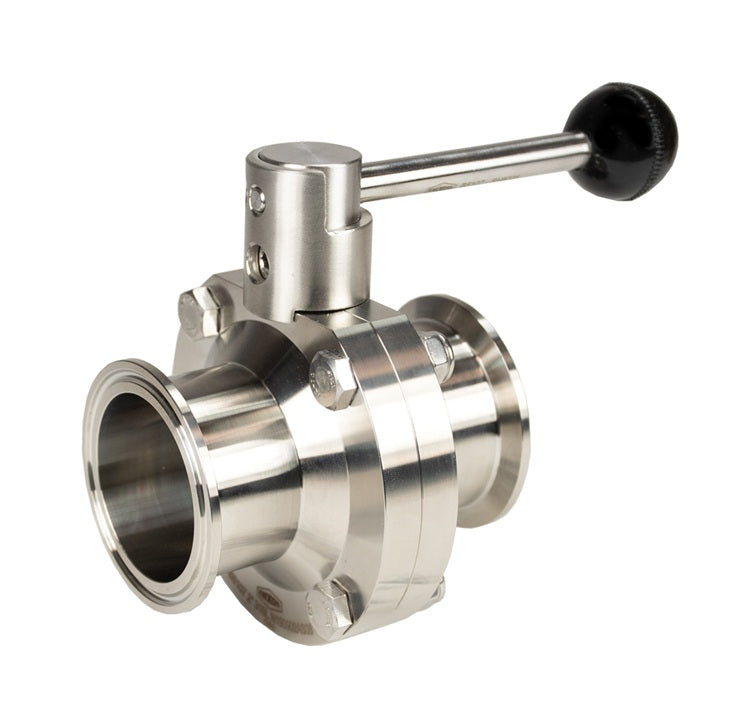

B5107S200CC-A Dixon Valve 2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - Silicone Seats

B5107S200CC-A Dixon Valve 2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - Silicone Seats

Save $145.39 Save $145.39
$363.47
$363.47 - $363.47
$363.47
$218.08
$218.08 - $218.08
$218.08

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle [A] | 316L Stainless Steel with Silicone Seats
Specifications for Variant SKU: B5107S200CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel.
  • Seat: Silicone.
  • Seat lubricant: MOLYKOTE® 111.
Sealing Material:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C).
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C).
Part Number Size Dimensions

A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107S050CC-A 1/2" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107S075CC-A 3/4" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107S100CC-A 1" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107S150CC-A 1-1/2" 3.50" 0.90" 3.10" 2.60" 4.60"
B5107S200CC-A 2" 3.80" 0.90" 3.90" 3.00" 4.60"
B5107S250CC-A 2-1/2" 3.80" 0.90" 4.60" 3.40" 4.60"
B5107S300CC-A 3" 4.10" 1.20" 5.20" 3.50" 6.50"
B5107S400CC-A 4" 4.80" 1.20" 6.70" 4.30" 6.50"
B5107S600CC-A 6" 5.50" 1.20" 8.50" 5.60" 11.70"
