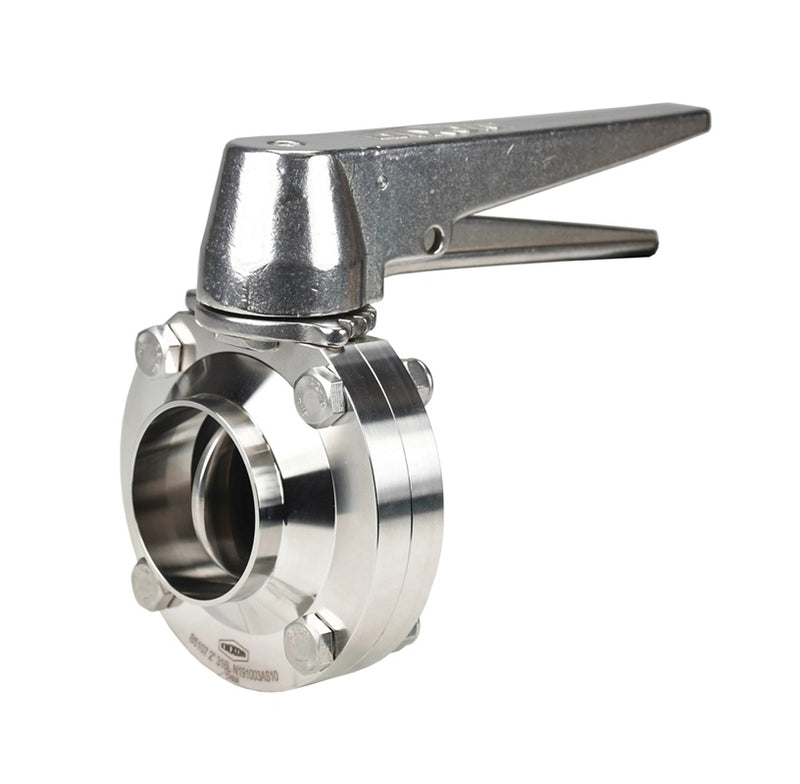

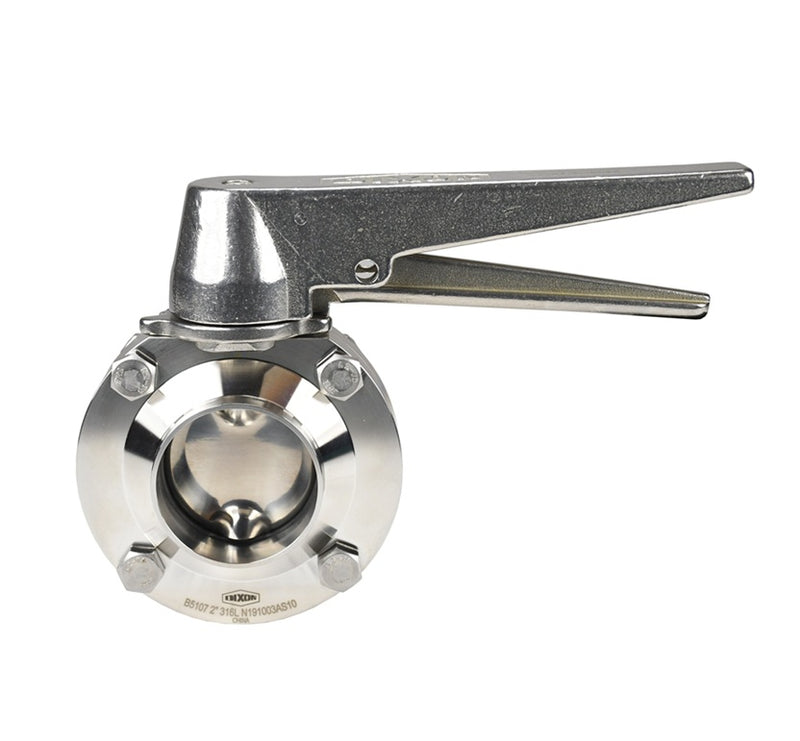

B5107S250BB-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - Silicone Seats

B5107S250BB-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - Silicone Seats

$0.00 - $0.00
$0.00
$285.79
$285.79 - $285.79
$285.79

Dixon Sanitary Valves
Weld End Butterfly Valve with Trigger Handle [C] - 316L Stainless Steel with Silicone Seats
Specifications for Variant SKU: B5107S250BB-C Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Weld End, 2-1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Features:
  • Lockout / tagout handle.
  • Hex head body bolts eliminate the recessed cavity found in socket head body bolts, reducing the potential for bacterial buildup. Sizes 1/2" to 4".
  • Body design enhances the exterior cleanability and drainability of the valve by utilizing a large machined chamfer between the flange face and the tube OD.
  • New EPDM with self-lubricating properties and silicone rubber help to reduce break torque and provide added durability to valve seats. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • Increased disc stem square size provides added durability when higher torques are experienced due to viscous or sticky process fluids.
  • Coupler design eliminates the need for the roll pin to connect to the actuator, saving time during assembly. Additionally, sensing targets are incorporated into the coupler meaning no extra accessories are needed when adding external proximity sensors.
  • Actuator design allows for a control top to be added to any standard actuator in the field without the need to change the actuator.
  • Single piece bracket makes assembly fast and easy compared to two-piece designs.
  • Sensors can easily be added to any actuated valve without the need to purchase additional mounting hardware.
  • Not for use with bolted clamps.
  • 100% hydraulic tested / 100% inspected.
  • Field serviceable (no special tools required).
Materials:
  • Product contact components (body and disc): forged 316L stainless steel.
  • Non-product contact components: 304 stainless steel.
Sealing Material:
  • Silicone for valve sizes 1/2" to 4" have USP VI Certification.
  • NOTE: 6" and 8" valves only available with EPDM and silicone.
  • Non-product contact components (bushings): polyacetal.
Line Pressure:
  • Max product line pressure:
    • 1/2" to 2": 140 PSI
    • 2-1/2" to 3": 110 PSI
    • 4": 85 PSI
    • 6" to 8": 60 PSI
  • Minimum product line pressure: 0.4" Hg vacuum at 68°F (20°C)
Temperature:
  • Minimum/Maximum Operating Temperature: 32°F to 200°F (0°C to 93°C)
Surface Finish:
  • Product contact components: Ra ≤ 32
Pneumatic Connections Technical Data (linear actuator):
  • Threaded air fitting size: G1/8"
  • Air connection hose size: 1/4" flexible poly tubing
  • Max supply air pressure: 100 PSI (6.9 bar)
  • Minimum supply air pressure: 80 PSI (5.5 bar)
Valve Stem Square Size:
  • 1/2" to 4": 10mm
  • 6": 13mm
  • 8": 14mm
Part Number Size Break Torque Flow Coefficient
B5107S050BB-C 1/2" 20 in. lbs. 7 CV
B5107S075BB-C 3/4" 20 in. lbs. 11 CV
B5107S100BB-C 1" 20 in. lbs. 23 CV
B5107S150BB-C 1-1/2" 40 in. lbs. 80 CV
B5107S200BB-C 2" 55 in. lbs. 230 CV
B5107S250BB-C 2-1/2" 70 in. lbs. 264 CV
B5107S300BB-C 3" 165 in. lbs. 372 CV
B5107S400BB-C 4" 350 in. lbs. 800 CV
