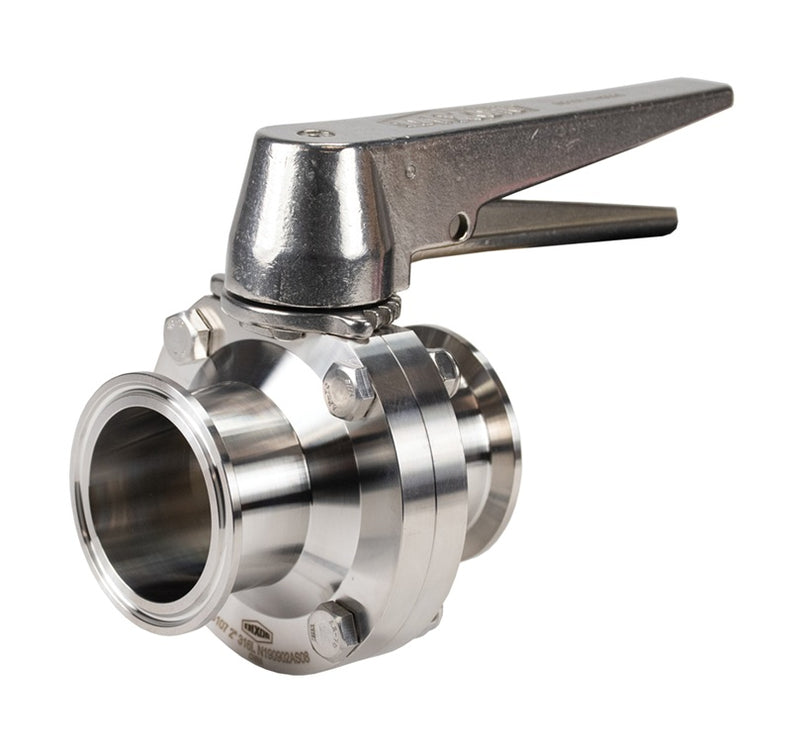

B5107S300CC-C Dixon Valve 3" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - Silicone Seats

B5107S300CC-C Dixon Valve 3" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - Silicone Seats

Save $244.98 Save $244.98
$612.45
$612.45 - $612.45
$612.45
$367.47
$367.47 - $367.47
$367.47

Dixon Sanitary Valves
Clamp End Butterfly Valve with Trigger Handle [C] | 316L Stainless Steel with Silicone Seats
Specifications for Variant SKU: B5107S300CC-C Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Sanitary Clamp End, 3in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel
  • Seat: Silicone
  • Seat lubricant: MOLYKOTE® 111
Specifications:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C)
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C)
Part Number Size A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107S050CC-C 1/2" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107S075CC-C 3/4" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107S100CC-C 1" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107S150CC-C 1-1/2" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107S200CC-C 2" 3.80" 0.90" 3.90" 3.00" 5.90"
B5107S250CC-C 2-1/2" 3.80" 0.90" 4.60" 3.40" 5.90"
B5107S300CC-C 3" 4.10" 1.20" 5.20" 3.50" 5.90"
B5107S400CC-C 4" 4.80" 1.20" 6.70" 4.30" 5.90"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
