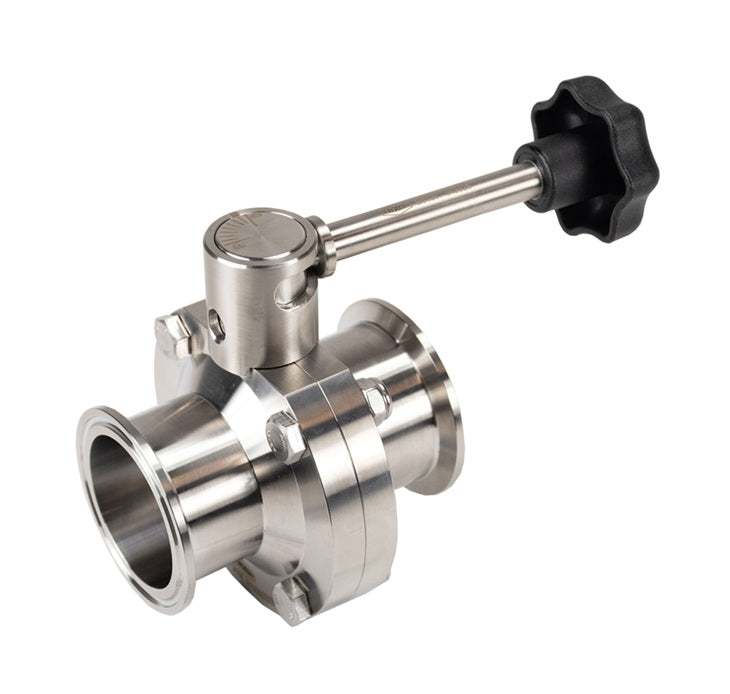

B5107V050CC-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Infinite Handle - FKM Seats

B5107V050CC-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Infinite Handle - FKM Seats

Save $152.26 Save $152.26
$380.65
$380.65 - $380.65
$380.65
$228.39
$228.39 - $228.39
$228.39

Dixon Sanitary Valves
Clamp End Butterfly Valve with Infinite Handle [B] | 316L Stainless Steel with FKM Seats
Specifications for Variant SKU: B5107V050CC-B Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Sanitary Clamp End, 1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel
  • Seat: FKM
  • Seat lubricant: MOLYKOTE® 111
Specifications:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C)
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C)
Part Number Size Dimensions

A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107V050CC-B 1/2" 3.50" 0.90" 3.10" 2.60" 4.90"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
