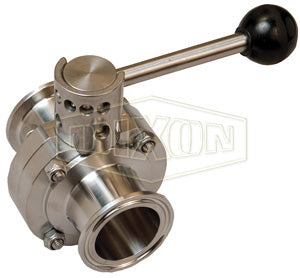

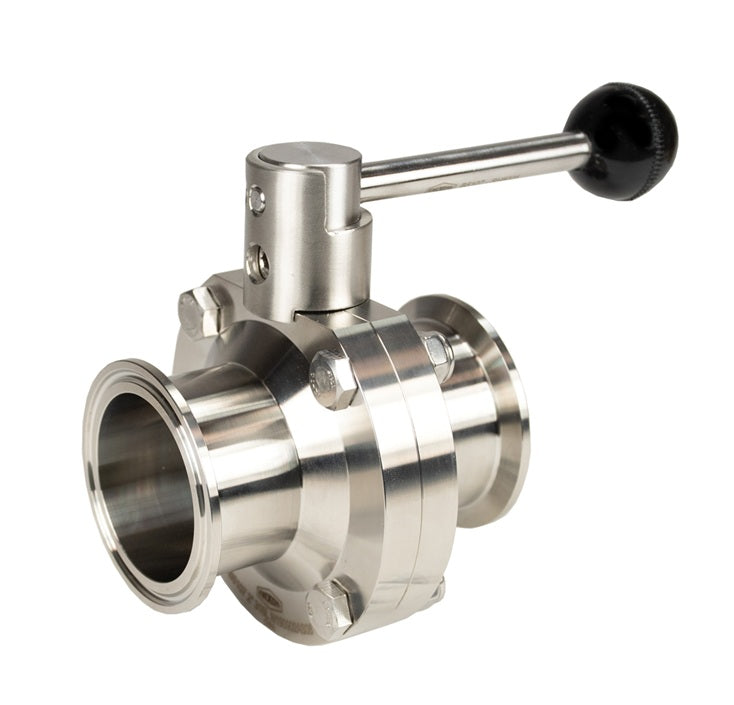

B5107V100CC-A Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - FKM Seats

B5107V100CC-A Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - FKM Seats

$0.00 - $0.00
$0.00
$207.57
$207.57 - $207.57
$207.57

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle [A] - 316L Stainless Steel with FKM Seats
Specifications for Variant SKU: B5107V100CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Hex head body bolts eliminate the recessed cavity found in socket head body bolts, reducing the potential for bacterial buildup. Sizes 1/2" to 4".
  • Body design enhances the exterior cleanability and drainability of the valve by utilizing a large machined chamfer between the flange face and the tube OD.
  • New EPDM with self-lubricating properties and silicone rubber help to reduce break torque and provide added durability to valve seats. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • Increased disc stem square size provides added durability when higher torques are experienced due to viscous or sticky process fluids.
  • Coupler design eliminates the need for the roll pin to connect to the actuator, saving time during assembly. Additionally, sensing targets are incorporated into the coupler meaning no extra accessories are needed when adding external proximity sensors.
  • Actuator design allows for a control top to be added to any standard actuator in the field without the need to change the actuator.
  • Single piece bracket makes assembly fast and easy compared to two-piece designs.
  • Sensors can easily be added to any actuated valve without the need to purchase additional mounting hardware.
  • Not for use with bolted clamps.
  • 100% hydraulic tested / 100% inspected.
  • Field serviceable (no special tools required).
Materials:
  • Product contact components (body and disc): forged 316L stainless steel.
Sealing Material:
  • Non-product contact components (bushings): polyacetal.
Line Pressure:
  • Max product line pressure:
    • 1/2" to 2": 140 PSI
    • 2-1/2" to 3": 110 PSI
    • 4": 85 PSI
    • 6" to 8": 60 PSI
  • Minimum product line pressure: 0.4" Hg vacuum at 68°F (20°C)
Temperature:
  • Minimum/Maximum Operating Temperature: 32°F to 200°F (0°C to 93°C)
Surface Finish:
  • Product contact components: Ra ≤ 32
Pneumatic Connections Technical Data (linear actuator):
  • Threaded air fitting size: G1/8"
  • Air connection hose size: 1/4" flexible poly tubing
  • Max supply air pressure: 100 PSI (6.9 bar)
  • Minimum supply air pressure: 80 PSI (5.5 bar)
Valve Stem Square Size:
  • 1/2" to 4": 10mm
  • 6": 13mm
  • 8": 14mm
Part Number Size Break Torque Flow Coefficient
B5107V050CC-A 1/2" 70 in. lbs. 7 CV
B5107V075CC-A 3/4" 70 in. lbs. 11 CV
B5107V100CC-A 1" 70 in. lbs. 23 CV
B5107V150CC-A 1-1/2" 125 in. lbs. 80 CV
B5107V200CC-A 2" 175 in. lbs. 230 CV
B5107V250CC-A 2-1/2" 220 in. lbs. 264 CV
B5107V300CC-A 3" 310 in. lbs. 372 CV
B5107V400CC-A 4" 450 in. lbs. 800 CV
