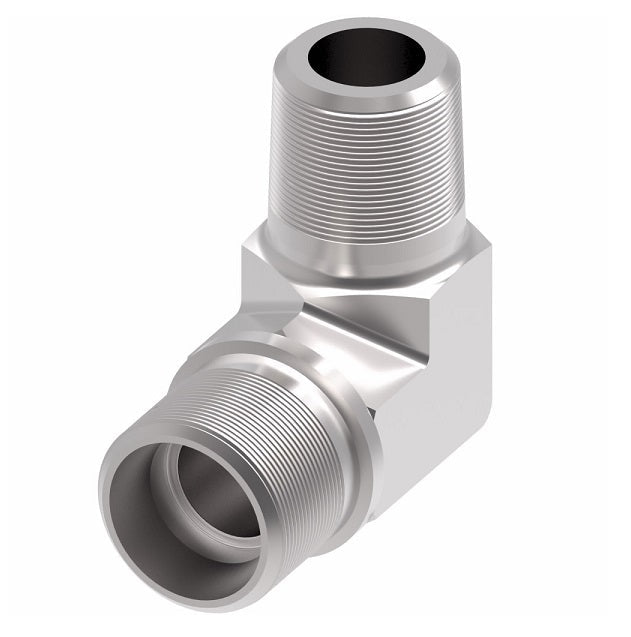

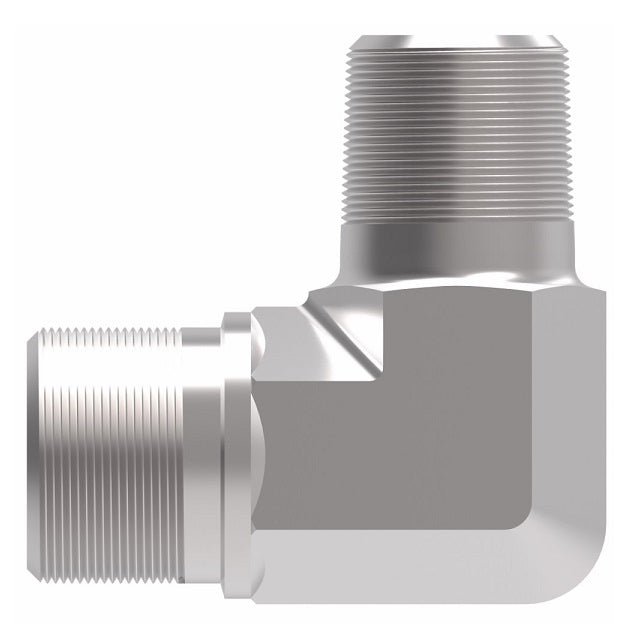

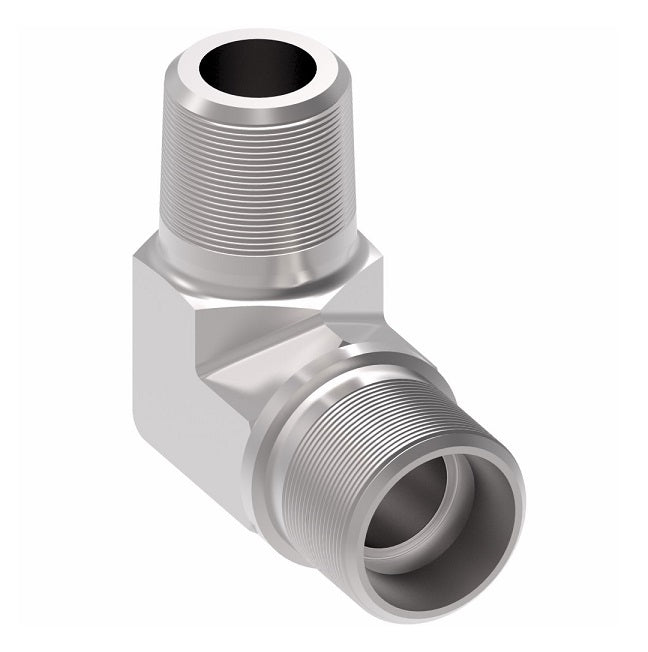

B7405X8 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 1/2" Tube OD | Steel

B7405X8 Ermeto by Danfoss | 7000 Series | Male Pipe/Tube 90° Elbow Connector (Body Only) | 3/8" Male NPTF x 1/2" Tube OD | Steel

$16.02

Ermeto by Danfoss
Male Pipe/Tube Connector
Male NPTF x Tube
90° Elbow

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B7405X8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male NPTF, 1/2in Tube Compression
Material(s): Steel
Specifications:
  • Ref. SAE No. 080202
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N Across
Flats
7405X2 B7405X2 1/8" 1/8" 0.093" 0.188" 0.77" 0.72" 7/16"
7405X3 B7405X3 3/16" 1/8" 0.125" 0.188" 0.83" 0.72" 7/16"
7405X4 B7405X4 1/4" 1/8" 0.203" 0.188" 0.89" 0.78" 7/16"
7405X4X4 B7405X4X4 1/4" 1/4" 0.203" 0.281" 1.03" 1.09" 9/16"
7405X5 B7405X5 5/16" 1/8" 0.234" 0.188" 0.95" 0.81" 1/2"
7405X5X4 B7405X5X4 5/16" 1/4" 0.234" 0.281" 1.03" 1.09" 9/16"
7405X6 B7405X6 3/8" 1/4" 0.281" 0.281" 1.05" 1.09" 9/16"
7405X6X2 B7405X6X2 3/8" 1/8" 0.281" 0.188" 1.05" 0.90" 9/16"
7405X6X6 B7405X6X6 3/8" 3/8" 0.281" 0.406" 1.16" 1.22" 3/4"
7405X6X8 B7405X6X8 3/8" 1/2" 0.281" 0.531" 1.24" 1.47" 7/8"
7405X8 B7405X8 1/2" 3/8" 0.422" 0.406" 1.25" 1.22" 3/4"
7405X8X4 B7405X8X4 1/2" 1/4" 0.422" 0.281" 1.25" 1.22" 3/4"
7405X8X8 B7405X8X8 1/2" 1/2" 0.422" 0.531" 1.35" 1.47" 7/8"
7405X10 B7405X10 5/8" 1/2" 0.500" 0.531" 1.42" 1.47" 7/8"
7405X10X6 B7405X10X6 5/8" 3/8" 0.500" 0.406" 1.42" 1.28" 7/8"
7405X12 B7405X12 3/4" 3/4" 0.656" 0.719" 1.58" 1.59" 1-1/16"
7405X12X8 B7405X12X8 3/4" 1/2" 0.656" 0.531" 1.58" 1.59" 1-1/16"
7405X14 B7405X14 7/8" 3/4" 0.718" 0.719" 1.62" 1.69" 1-5/16"
7405X16 B7405X16 1" 1" 0.875" 0.938" 1.73" 1.97" 1-5/16"
7405X16X12 B7405X16X12 1" 3/4" 0.875" 0.719" 1.73" 1.78" 1-5/16"
7405X20 B7405X20 1-1/4" 1-1/4" 1.093" 1.250" 1.89" 2.38" 1-5/8"
7405X24 B7405x24 1-1/2" 1-1/2" 1.344" 1.500" 2.02" 2.64" 1-7/8"
