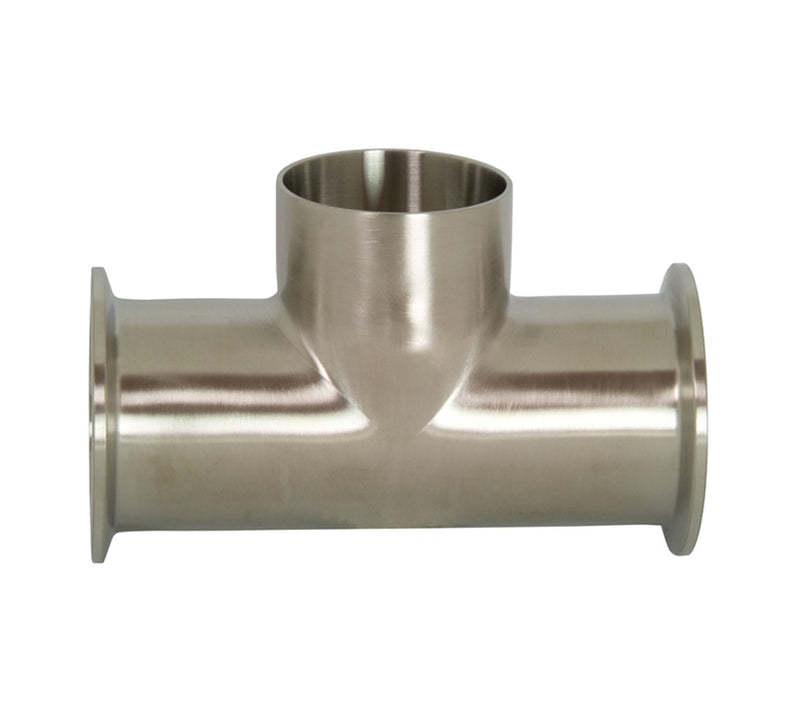

B7MMW-G100 Dixon Valve 304 Stainless Steel Sanitary Polished Clamp Run x Weld Branch Tee (#7 Finish) - 1" Tube OD

Name: B7MMW-G100 Dixon Valve 304 Stainless Steel Sanitary Polished Clamp Run x Weld Branch Tee (#7 Finish) - 1" Tube OD
Brand: Dixon
SKU: B7MMW-G100 Dixon
Price: 109.92 USD
Availability: InStock

Save $73.28

$183.20

$183.20 - $183.20

$183.20

$109.92

$109.92 - $109.92

$109.92

Dixon Sanitary
Polished Clamp Run x Weld Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

Specifications for Variant SKU: B7MMW-G100 Dixon
Shape (Orientation):	Tee
Material(s):	304 Stainless Steel
Special Properties:	Polished

Features:
3A sanitary finish ID and OD.


304 Stainless Steel Part Number	316L Stainless Steel Part Number	Tube OD	Wall Thickness	A	B	OD	ID
B7MMW-G100	-	1"	0.065"	3.25"	1.13"	1.00"	0.87"
B7MMW-G150	B7MMW-R150	1-1/2"	0.065"	4.31"	1.66"	1.50"	1.37"
B7MMW-G200	B7MMW-R200	2"	0.065"	5.12"	2.06"	2.00"	1.87"
B7MMW-G250	-	2-1/2"	0.065"	5.69"	2.34"	2.50"	2.37"
B7MMW-G300	B7MMW-R300	3"	0.065"	6.19"	2.59"	3.00"	2.87"
B7MMW-G400	-	4"	0.083"	8.13"	3.44"	4.00"	3.83"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
