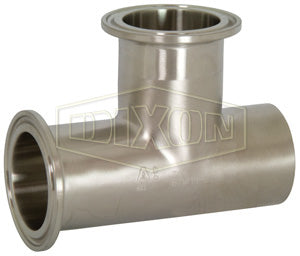

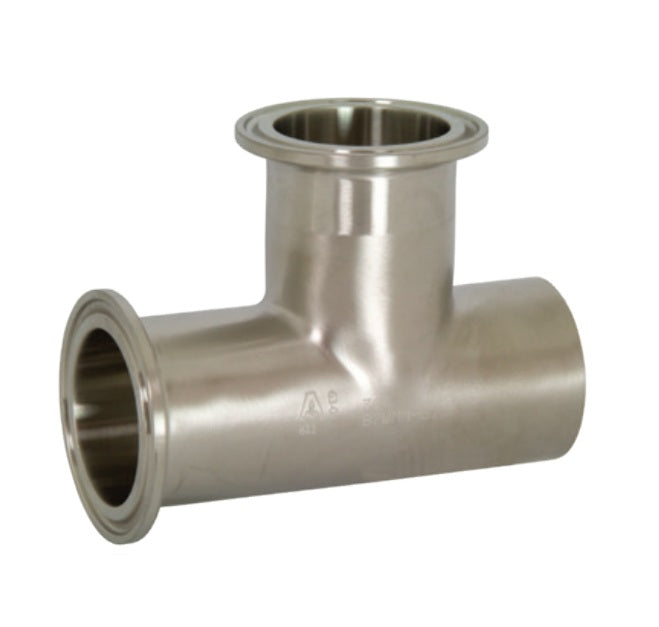

B7WMM-G400 Dixon Valve 304 Stainless Steel Sanitary Polished Weld x Clamp Run x Clamp Branch Tee - 4" Tube OD

B7WMM-G400 Dixon Valve 304 Stainless Steel Sanitary Polished Weld x Clamp Run x Clamp Branch Tee - 4" Tube OD

Save $135.97 Save $135.97
$339.92
$339.92 - $339.92
$339.92
$203.95
$203.95 - $203.95
$203.95

Dixon Sanitary Fittings
Polished Weld x Clamp Run x Clamp Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B7WMM-G400 Dixon
Shape (Orientation): Tee
Material(s): 304 Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD.
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Wall Thickness A B
B7WMM-G100 B7WMM-R100 1" 0.065" 2.750" 1.625"
B7WMM-G150 B7WMM-R150 1-1/2" 0.065" 3.812" 2.156"
B7WMM-G200 B7WMM-R200 2" 0.065" 4.624" 2.562"
B7WMM-G250 - 2-1/2" 0.065" 5.188" 2.844"
B7WMM-G300 - 3" 0.065" 5.688" 3.094"
B7WMM-G400 - 4" 0.083" 7.500" 4.063"
