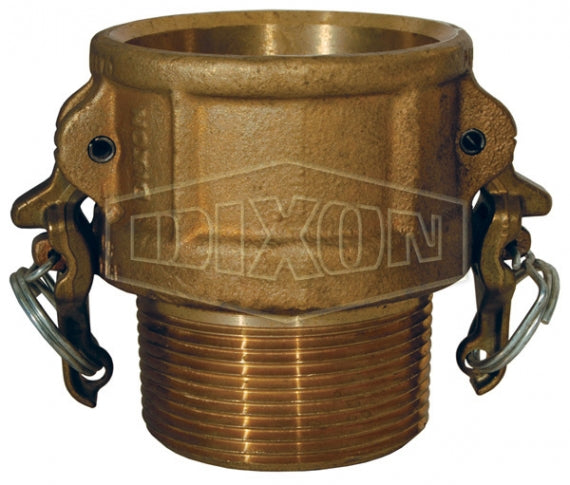

BB125 by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type B | 1-1/4" Coupler x 1-1/4" Male NPT | Brass

Name: BB125 by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type B | 1-1/4" Coupler x 1-1/4" Male NPT | Brass
Brand: Dixon
SKU: BB125 Dixon
Price: 78.31 USD
Availability: InStock

Save $5.99

$84.30

$84.30 - $84.30

$84.30

$78.31

$78.31 - $78.31

$78.31

Dixon Valve
Boss-Lock Cam & Groove Coupler | Type B | Coupler x Male NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: BB125 Dixon
Brand:	Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	1-1/4in Female Cam & Groove, 1-1/4in Male NPT
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile Rubber gasket. Boss-Lock cam arms. Supplied with pull-ring safety clips.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action. The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
Safety Note:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	Plated Malleable Iron Part Number	316 Stainless Steel Part Number	Size	Max. Operating Pressure
-	-	-	RB050BL	3/4" x 1/2"	150 PSI
-	BB075	-	RB075BL	3/4"	250 PSI
AB100	BB100	IB100	RB100BL	1"	250 PSI
AB125	BB125	-	RB125BL	1-1/4"	250 PSI
AB150	BB150	-	RB150BL	1-1/2"	250 PSI
AB200	BB200	IB200	RB200BL	2"	250 PSI
AB250	BB250	-	-	2-1/2"	150 PSI
AB300	BB300	-	RB300BL	3"	125 PSI
AB400	BB400	-	RB400BL	4"	100 PSI
AB600	-	-	-	6"	75 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
