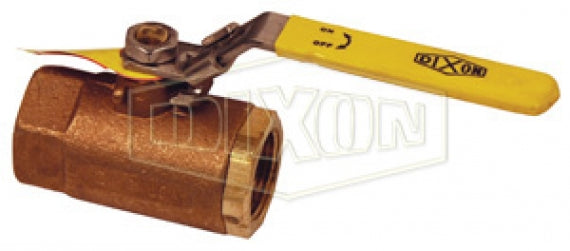

BBV125LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 1-1/4" Female NPT x 1-1/4" Female NPT | Bronze

BBV125LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 1-1/4" Female NPT x 1-1/4" Female NPT | Bronze

Save $103.19 Save $103.19
$257.98
$257.98 - $257.98
$257.98
$154.79
$154.79 - $154.79
$154.79

Dixon Valve & Coupling
Safety Vented Ball Valve | Bronze

For air service only.
Specifications for Variant SKU: BBV125LV Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Vent downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems.
Materials:
  • Body: Bronze.
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Pressure rating: 0-125 PSI.
Part Number Female NPT x Female NPT Port
BBV25LV 1/4" Full
BBV38LV 3/8" Full
BBV50LV 1/2" Full
BBV75LV 3/4" Standard
BBV100LV 1" Standard
BBV125LV 1-1/4" Standard
BBV150LV 1-1/2" Standard
BBV200LV 2" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
