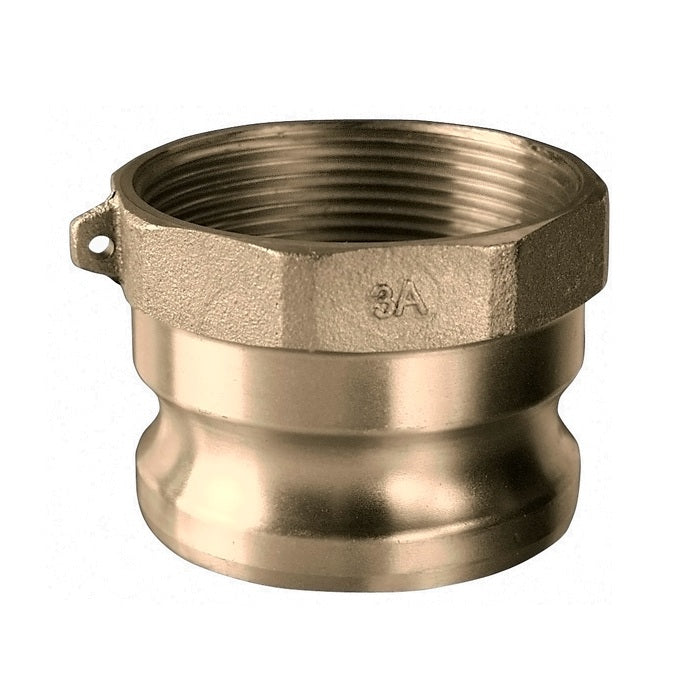

BR-A300 by Kuriyama | BR-A Series | Part A | Cam & Groove Adapter | 3" Adapter x 3" Female NPT | Brass

BR-A300 by Kuriyama | BR-A Series | Part A | Cam & Groove Adapter | 3" Adapter x 3" Female NPT | Brass

Save $14.38 Save $14.38
$79.04
$79.04 - $79.04
$79.04
$64.66
$64.66 - $64.66
$64.66

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BR-A Series | Part A | Adapter x Female NPT | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-A300 Kuriyama
Series: BR-A Series
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 3in Male Cam & Groove, 3in Female NPT
Material(s): Brass

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-A050 1/2" 250 PSI B584 C85700 0.15 lbs
BR-A075 3/4" 250 PSI B584 C85700 0.24 lbs
BR-A100 1" 250 PSI B584 C85700 0.34 lbs
BR-A125 1-1/4" 250 PSI B584 C85700 0.66 lbs
BR-A150 1-1/2" 250 PSI B584 C85700 0.73 lbs
BR-A200 2" 250 PSI B584 C85700 0.86 lbs
BR-A250 2-1/2" 150 PSI B584 C85700 1.61 lbs
BR-A300 3" 150 PSI B584 C85700 1.72 lbs
BR-A400 4" 150 PSI B584 C85700 3.41 lbs
BR-A500 5" 75 PSI B584 C85700 4.85 lbs
BR-A600 6" 75 PSI B584 C85700 7.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
