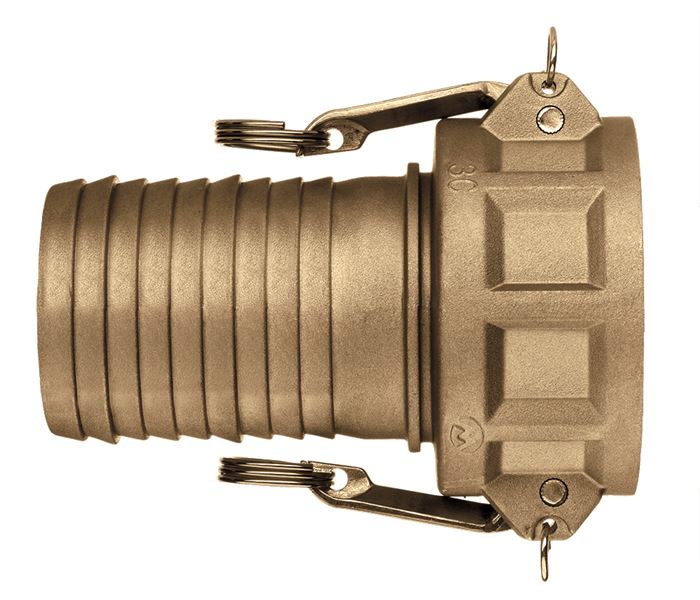

BR-C200 by Kuriyama | BR-C Series | Part C | Cam & Groove Fitting | Tri-Couple | 2" Coupler x 2" Hose Barb | Brass

BR-C200 by Kuriyama | BR-C Series | Part C | Cam & Groove Fitting | Tri-Couple | 2" Coupler x 2" Hose Barb | Brass

Save $14.38 Save $14.38
$73.10
$73.10 - $73.10
$73.10
$58.72
$58.72 - $58.72
$58.72

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | BR-C Series | Part C | Coupler x Hose Barb | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BR-C200 Kuriyama
Series: BR-C Series
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Tri-Couple™ design available in 1-1/2", 2", 3", 4" sizes.
  • Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • 304 stainless steel handle pins and pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-C050 1/2" 250 PSI B584 C85700 0.35 lbs
BR-C075 3/4" 250 PSI B584 C85700 0.53 lbs
BR-A100 1" 250 PSI B584 C85700 0.81 lbs
BR-C125 1-1/4" 250 PSI B584 C85700 1.23 lbs
BR-C150* 1-1/2" 250 PSI B584 C85700 1.32 lbs
BR-C200* 2" 250 PSI B584 C85700 1.72 lbs
BR-C250 2-1/2" 150 PSI B584 C85700 2.42 lbs
BR-C300* 3" 150 PSI B584 C85700 3.74 lbs
BR-C400* 4" 150 PSI B584 C85700 5.51 lbs
BR-C500 5" 75 PSI B584 C85700 7.27 lbs
BR-C600 6" 75 PSI B584 C85700 13.77 lbs

* Designates Tri-Couple fitting.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
