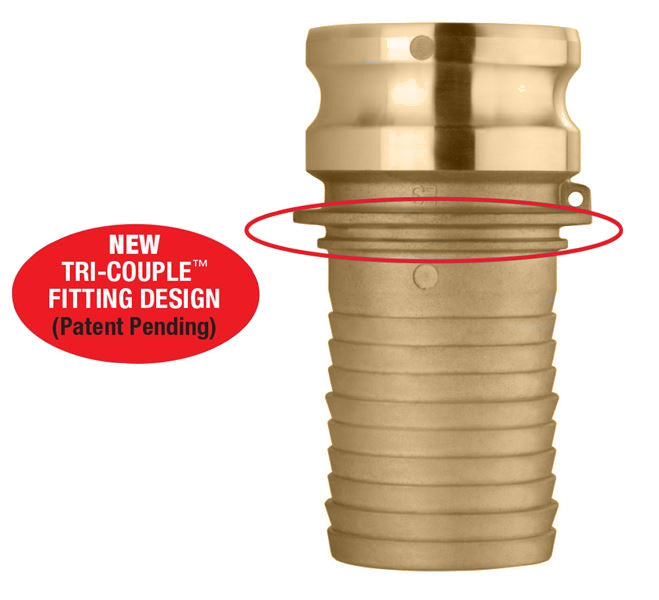

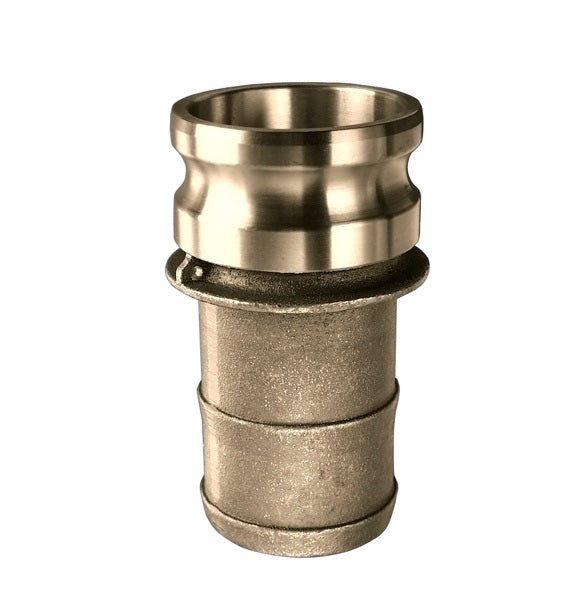

BR-E300 by Kuriyama | BR-E Series | Part E | Cam & Groove Fitting | Tri-Couple | 3" Adapter x 3" Hose Barb | Brass

Save $19.16

$110.32

$110.32 - $110.32

$110.32

$91.16

$91.16 - $91.16

$91.16

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | BR-E Series | Part E | Adapter x Hose Barb | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: BR-E300 Kuriyama
Series:	BR-E Series
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	3in Male Cam & Groove, 3in Hose Barb
Material(s):	Brass

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Highly resistant to damage and corrosion.
Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Tri-Couple™ design available in 1-1/2", 2", 3", 4" sizes.
Brass alloy specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

ASTM brass alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
BR-E050	1/2"	250 PSI	B584 C85700	0.24 lbs
BR-E075	3/4"	250 PSI	B584 C85700	0.36 lbs
BR-E100	1"	250 PSI	B584 C85700	0.59 lbs
BR-E125	1-1/4"	250 PSI	B584 C85700	0.75 lbs
BR-E150*	1-1/2"	250 PSI	B584 C85700	1.01 lbs
BR-E200*	2"	250 PSI	B584 C85700	1.54 lbs
BR-E250	2-1/2"	150 PSI	B584 C85700	2.11 lbs
BR-E300*	3"	150 PSI	B584 C85700	3.08 lbs
BR-E400*	4"	150 PSI	B584 C85700	4.30 lbs
BR-E500	5"	75 PSI	B584 C85700	7.60 lbs
BR-E600	6"	75 PSI	B584 C85700	12.33 lbs

* Designates Tri-Couple fitting

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
