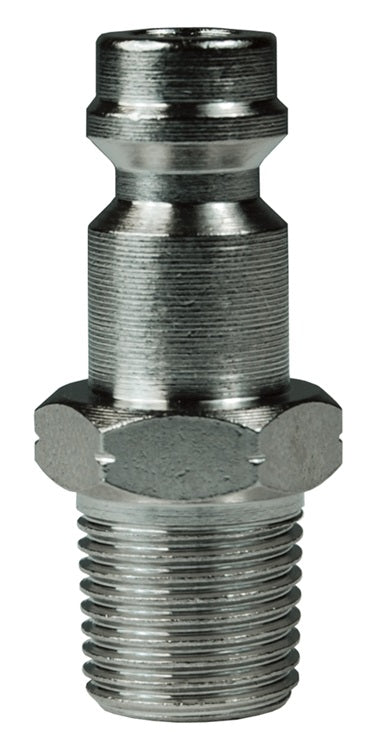

BR1M1-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Male NPT x 1/8" 21-Series Interchange | Plug | Brass

BR1M1-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Male NPT x 1/8" 21-Series Interchange | Plug | Brass

Save $0.23 Save $0.23
$2.07
$2.07 - $2.07
$2.07
$1.84
$1.84 - $1.84
$1.84

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Plug (Male Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BR1M1-B-E-7 Dixon
Series: BR-Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Male BR-Series QD Interchange, 1/8in Male NPTF
Material(s): Brass
Compatibility & Interchange:
  • Rectus 21KA, Tomco Series SC, CEJN Series 223
Construction:
  • Machined components are manufactured using solid brass bar stock.
  • Machined components are plated with chrome-over-nickel plating.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
BR-Series | 21-Series Interchange Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
BR1M1-B-E-7 Plug/Male 1/8" 1/8" - 27 Male NPT Brass 1.06"
(26.9mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
BR1GM1-B-E-7 Plug/Male 1/8" 1/8" - 28 Male BSPP Brass 1.06"
(26.9mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
BR1M2-B-E-7 Plug/Male 1/8" 1/4" - 18 Male NPT Brass 1.20"
(30.5mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
BR1GM2-B-E-7 Plug/Male 1/8" 1/4" - 19 Male BSPP Brass 1.20"
(30.5mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
BR-Series | 21-Series Interchange Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
1BRM1-B-7 Socket/Female 1/8" 1/8" - 27 Male NPT Brass 1.49"
(37.8mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
1BRGM1-B-7 Socket/Female 1/8" 1/8" - 28 Male BSPP Brass 1.49"
(37.8mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
1BRM2-B-7 Socket/Female 1/8" 1/4" - 18 Male NPT Brass 1.61"
(40.9mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
1BRGM2-B-7 Socket/Female 1/8" 1/4" - 19 Male BSPP Brass 1.61"
(40.9mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
