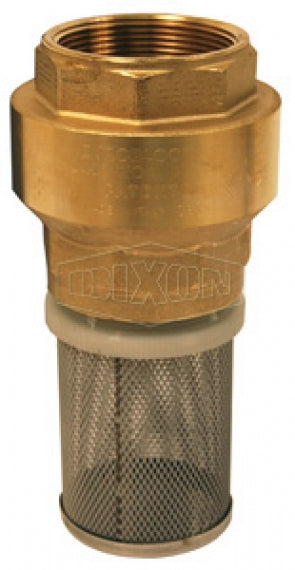

BVFS20 by Dixon Valve | Spring-Loaded Check Valve with Strainer | 1-1/2" Female NPT | Brass & Stainless Steel

BVFS20 by Dixon Valve | Spring-Loaded Check Valve with Strainer | 1-1/2" Female NPT | Brass & Stainless Steel

Save $43.05 Save $43.05
$107.62
$107.62 - $107.62
$107.62
$64.57
$64.57 - $64.57
$64.57

Dixon Valve & Coupling
Spring-Loaded Check Valve with Strainer
Specifications for Variant SKU: BVFS20 Dixon
Features:
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action.
  • Flow profile designed to minimize head loss.
Materials:
  • Brass with NBR seat and stainless steel strainer.
Specifications:
  • Temperature range: 10°F to 210°F (-10°C to 100°C)
  • Cracking pressure: 0.50 PSI
  • Pressure rating: 1-1/2" to 2" 400 PSI WOG, 3"-4" 175 PSI WOG
Part Number Female NPT
BVFS20 1-1/2"
BVFS25 2"
BVFS35 3"
BVFS40 4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
