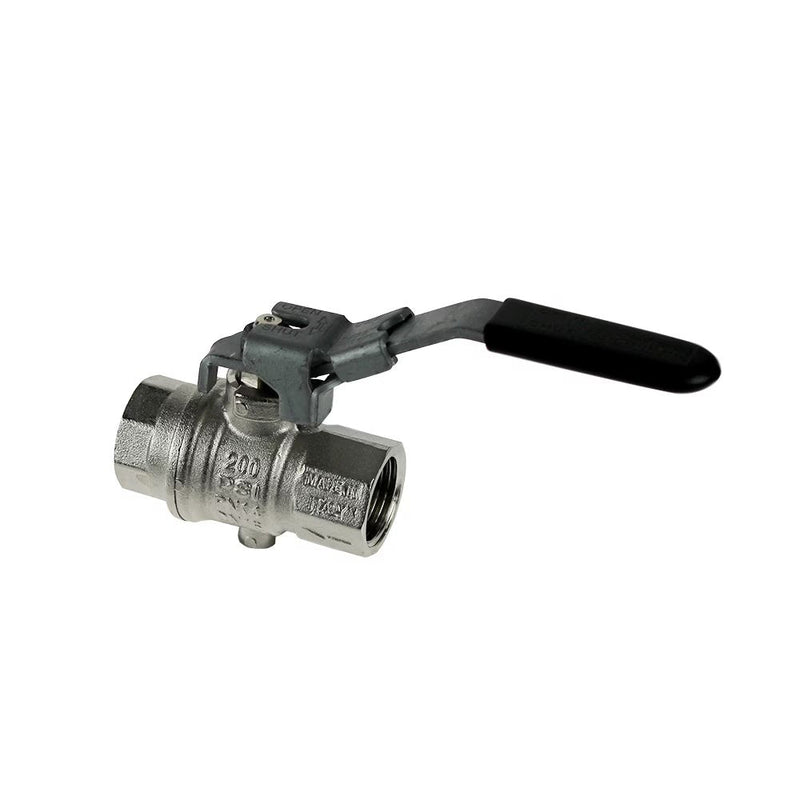

BVG4-1LOCK by Parker | In-Line Lockable Ball Valve | 1" Female BSPP Thread | 38 mm Hex | Straight | Nickel-Plated Brass

Save $16.78

$108.46

$108.46 - $108.46

$108.46

$91.68

$91.68 - $91.68

$91.68

by Parker Hannifin
Standard Series:BVG4-LOCK 2/2 In-Line Lockable Ball Valve, Female BSPP Thread

Specifications for Variant SKU: BVG4-1LOCK Parker
Series:	BVG4-LOCK Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	PTFE, Rubber
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Model: Standard and Lockable Series Compatible Fluids: Compressed air Working Pressure: 0 to 40 bar up to 2" 0 to 30 bar up to 2" expected BVG4P-LOCK and BVG4-LOCK: 0 to 14 bar Working Temperature: -20°C to +170°C excepted BVG3P-LOCK: -10°C to +100°C
Advantages:	Long or butterfly handle Full fluid flow A lockable version for safety in use Corrosion resistance thanks to chemical nickel plating
Regulations:	PED RoHS REACH
Component Materials:	Locking System: Treated Steel Stem seal: FPM o-rings Seat seals: PTFE Long Lever: Geomet plated steel Compact Series Lever: Technical Polymer Butterfly Lever: Aluminum Locking nut and Locking screw: Zinc plated steel Stem: Nickel-Plated Brass Body: Nickel plated or chromium-plated shot blasted brass Ball: Chromium-plated brass


Part Number	Diameter Nominal (DN)	C	E	F	H	L	M	Kg
BVG4-1/4LOCK	8 mm	1/4"	9 mm	17 mm	46 mm	39 mm	96 mm	.150 Kg
BVG4-3/8LOCK	10 mm	3/8"	9 mm	20 mm	46 mm	39 mm	96 mm	.150 Kg
BVG4-1/2LOCK	15 mm	1/2"	11 mm	25 mm	51 mm	50 mm	96 mm	.255 Kg
BVG4-3/4LOCK	19 mm	3/4"	12 mm	31 mm	59 mm	54 mm	117 mm	.390 Kg
BVG4-1LOCK	25 mm	1"	14 mm	38 mm	63 mm	67 mm	117 mm	.590 Kg

Double stem seal in FPM
Working temperature -40°C to +170°C
