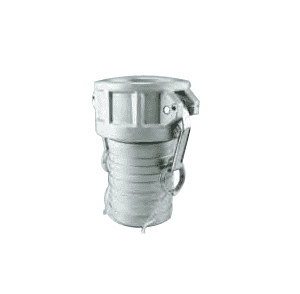

C600S by Jason Industrial | 6" Cam and Groove | Part C | Female Coupler X Hose Shank | 304 Stainless Steel

C600S by Jason Industrial | 6" Cam and Groove | Part C | Female Coupler X Hose Shank | 304 Stainless Steel

Save $2.39 Save $2.39
$239.24
$239.24 - $239.24
$239.24
$236.85
$236.85 - $236.85
$236.85

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part C - Female Coupler x Hose Shank - 304 Stainless Steel
Specifications for Variant SKU: C600S Jason
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 6in Female Cam & Groove, 6in Hose Barb
Material(s): 304 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Female end fits male adapter or Dust Plug.
  • Shank fits into hose ID.
  • Bowl has recess for washer replacement.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • Chemical composition of the alloy is analyzed on every melt.
  • Especialy capable for chemical and food applications.
Material Specs:
  • Coupling body material meets ASTM A666 304 stainless steel specifications.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
C050S 1/2" 150 PSI
C075S 3/4" 250 PSI
C100S 1" 250 PSI
C125S 1-1/4" 250 PSI
C150S 1-1/2" 250 PSI
C200S 2" 250 PSI
C250S 2-1/2" 150 PSI
C300S 3" 125 PSI
C400S 4" 100 PSI
C600S 6" 75 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
