C655120 OROFLEX® WELL by Kuriyama | Conical Coupling | 1-1/4" Male NPT x Hose Barb | Without Drain Hole | 316 Stainless Steel

Name: C655120 OROFLEX® WELL by Kuriyama | Conical Coupling | 1-1/4" Male NPT x Hose Barb | Without Drain Hole | 316 Stainless Steel
Brand: Kuriyama
SKU: C655120 Kuriyama
Price: 151.73 USD
Availability: InStock

Save $24.53

$176.26

$176.26 - $176.26

$176.26

$151.73

$151.73 - $151.73

$151.73

Kuriyama

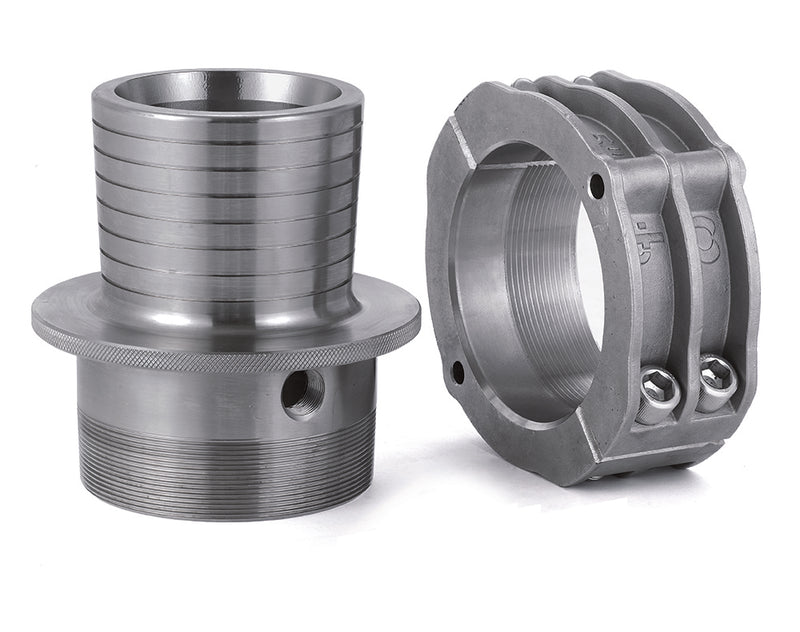

OROFLEX® WELL | Conical Coupling

For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.

Specifications for Variant SKU: C655120 Kuriyama
Brand:	OROFLEX WELL
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male NPT, 1-1/4in Hose Barb
Material(s):	316 Stainless Steel

Applications:
For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
Features:

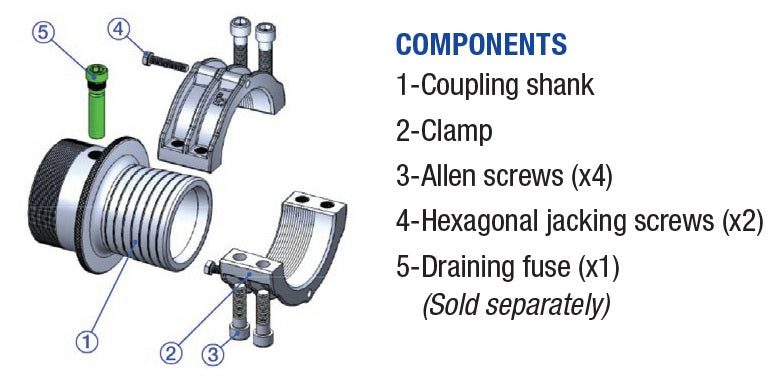

Includes coupling, clamp and screws. Available with or without drain hole. Field fittable and reusable.
Construction:
316 Stainless Steel

Part Number	Drain Hole	Thread	ID		Max. Diameter		Weight
Part Number	Drain Hole	Thread	in	mm	in	mm	lbs.
C655120	No	Male NPT	1-1/4"	32mm	2.60"	66mm	1.83 lbs
C654899	No	Male NPT	1-1/2"	40mm	2.76"	70mm	2.25 lbs
C654898*	Yes	Male NPT	1-1/2"	40mm	2.76"	70mm	2.25 lbs
C650089	No	Male NPT	2"	51mm	3.94"	100mm	5.29 lbs
C655005*	Yes	Male NPT	2"	51mm	3.94"	100mm	5.29 lbs
C650069	No	Male NPT	3"	76mm	5.12"	130mm	13.67 lbs
C650100*	Yes	Male NPT	3"	76mm	5.12"	130mm	13.67 lbs
C654827**	Yes	Male NPT	4"	102mm	6.50"	165mm	21.38 lbs
C654826*	Yes	Male NPT	4"	102mm	6.50"	165mm	21.38 lbs
C652353*	Yes	Male NPT	5"	127mm	7.72"	196mm	29.98 lbs
C652362**	Yes	Male NPT	6"	152mm	8.94"	227mm	44.31 lbs
C652349*	Yes	Male NPT	6"	152mm	8.94"	227mm	44.31 lbs
C655144**	Yes	Male NPT	8"	203mm	10.63"	270mm	105.82 lbs
C655143*	Yes	Male NPT	8"	203mm	10.63"	270mm	105.82 lbs

* Supplied with Fuse
** Supplied with Plug

Replacement Parts

Fuse Part Number	Plug Part Number	Torpedo (Plumb) Part Number	Coupling Diameter
Fuse Part Number	Plug Part Number	Torpedo (Plumb) Part Number	(in)	(mm)
-	-	C654340	1-1/4"	32mm
C650000	-	C654340	1-1/2"	40mm
C650002	-	C654350	2"	52mm
C650003	-	C654360	3"	76mm
C651497SS	C651498SS	C654370	4"	102mm
C651507SS	C653051SS	C654380	5"	127mm
C651507SS	C653051SS	C654380	6"	152mm
C652325SS	C653051SS	C654380	8"	203mm
