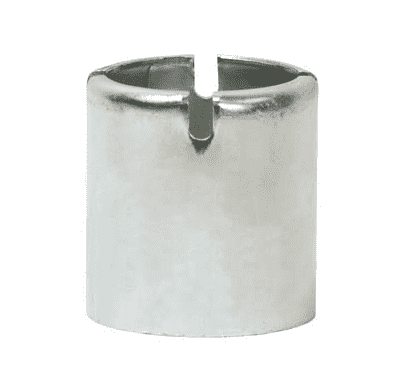

CF400-14CSHD Dixon King Crimp® | Heavy-Duty Ferrule | 5.125" Ferrule ID | for Hose OD from 5-1/64" to 5-4/64" | Carbon Steel

CF400-14CSHD Dixon King Crimp® | Heavy-Duty Ferrule | 5.125" Ferrule ID | for Hose OD from 5-1/64" to 5-4/64" | Carbon Steel

Save $1.36 Save $1.36
$26.53
$26.53 - $26.53
$26.53
$25.17
$25.17 - $25.17
$25.17

Dixon Valve & Coupling
King Crimp® Style | Heavy Duty Ferrule

Use with Heavy-Duty Combination Nipples.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CF400-14CSHD Dixon
Shape (Orientation): No Orientation
Material(s): Carbon Steel
Features:
  • For use with crimp style shanks.
Construction:
  • Carbon Steel.
Safety Notes:
  • Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with Dixon carbon steel ferrule part numbers CF400-6CSHD through CF400-16CSHD on Dixon Frac Fittings.
  • Pressure rating given at 70°F, consult Dixon for pressure rating at elevated temperatures.
Carbon Steel
Part Number		 Hose I.D. For Hose O.D Ferrule Wall Thickness Ferrule I.D. Ferrule Overall Length
From To
CF400-6CSHD 4" 4-33/64" 4-36/64" 0.120" 4.625" 4"
CF400-7CSHD 4" 4-37/64" 4-40/64" 0.120" 4.688" 4"
CF400-8CSHD 4" 4-41/64" 4-44/64" 0.120" 4.750" 4"
CF400-9CSHD 4" 4-45/64" 4-48/64" 0.120" 4.813" 4"
CF400-10CSHD 4" 4-49/64" 4-52/64" 0.120" 4.875" 4"
CF400-11CSHD 4" 4-53/64" 4-56/64" 0.120" 4.938" 4"
CF400-12CSHD 4" 4-57/64" 4-60/64" 0.120" 5.000" 4"
CF400-13CSHD 4" 4-61/64" 5" 0.120" 5.063" 4"
CF400-14CSHD 4" 5-1/64" 5-4/64" 0.120" 5.125" 4"
CF400-15CSHD 4" 5-5/64" 5-8/64" 0.120" 5.188" 4"
CF400-16CSHD 4" 5-9/64" 5-12/64" 0.120" 5.250" 4"
