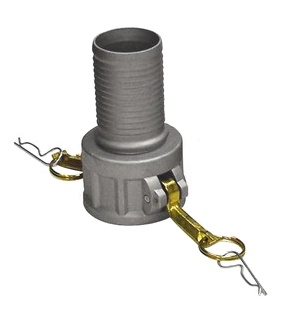

CGC-300CR-A1 by Midland | Crimplok Cam & Groove Coupling | Part C | 3" Female Coupler x 3" Hose Barb | Straight | Aluminum

CGC-300CR-A1 by Midland | Crimplok Cam & Groove Coupling | Part C | 3" Female Coupler x 3" Hose Barb | Straight | Aluminum

Save $16.31 Save $16.31
$40.77
$40.77 - $40.77
$40.77
$24.46
$24.46 - $24.46
$24.46

Midland Industries
Crimplok Cam & Groove - Part C - Female Coupler x Hose Barb - Aluminum

Designed for use with Buchanan Crimp Sleeves and Interlocking Ferrules.

Inventory @ Manufacturers Warehouse: 109 Units
Specifications for Variant SKU: CGC-300CR-A1 Midland
Shape (Orientation): Straight
Ends Configuration: 3in Female Cam & Groove, 3in Hose Barb
Material(s): Aluminum
Features:
  • Automatic self-locking arms prevent accidental disconnection.
  • Machined multi-serrated shank with interlocking groove.
  • Aluminum with Brass Self Locking Arms.
  • All fittings have a Crimplok groove for the ferrule end the Lok into for a strong permanent seal.
  • Serrations on the couplings and fittings are not as sharp at the top, but become sharper towards the Crimplok groove.
  • The length of the barb and sleeve/ ferrule are matched for a safer, cleaner connection.
  • Crimplok connections do not have sharp clamp buckles or edges.
  • Interchangeable with most market systems.
Pressure:
  • 2" @ 250 PSI
  • 3" & 4" @ 150 PSI
  • 6" @ 75 PSI
  • 6" @ 150 PSI (4 Arms)
Part Number Size
CGC-150CR-A1 1-1/2"
CGC-200CR-A1 2"
CGC-250CR-A1 2-1/2"
CGC-300CR-A1 3"
CGC-400CR-A1 4"
CGC-600CR-A1 6"
CGC-800CR-A1 8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
