20025748 Frontier™ by ContiTech | Air / Multipurpose Hose | Continental | 0.31" (5/16") ID | 200 PSI | Red | 500ft

20025748 Frontier™ by ContiTech | Air / Multipurpose Hose | Continental | 0.31" (5/16") ID | 200 PSI | Red | 500ft

Save $317.11 Save $317.11
$943.78
$943.78 - $943.78
$943.78
$626.67
$626.67 - $626.67
$626.67

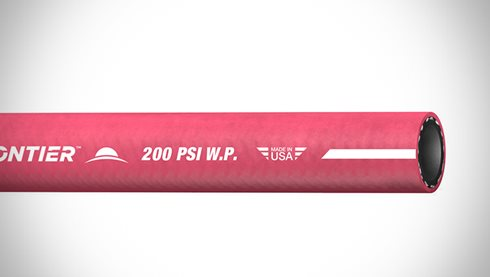

Continental ContiTech Frontier™ 200 Air & Multipurpose Hose

An economical air and water hose, Frontier™ is for a wide range of industrial, construction and agricultural applications.

Package Quantity: 500 FT

Specifications for Variant SKU: 20025748 ContiTech | 500 |
Brand: Frontier 200
Series: Frontier 200
Hose Color(s): Red
Internal Diameter: 0.31in
Outer Diameter: 0.58in
Tubing Construction: EPDM
Cover Construction: EPDM
Application: Air, water, industrial, construction, agricultural applications. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance)
Reinforcement: Spiral synthetic yarn, 2" is braided Cover: Black, Red, Yellow, Green or Blue EPDM synthetic rubber Class C (Limited Oil Resistance)
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: 1/2" Frontier™ Continental ContiTech 300 psi WP
Black
Part Number		 Red
Part Number		 Blue
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Weight Black
Order Code		 Red
Order Code		 Blue
Order Code		 Yellow
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20025544 - - 3/16" 4.8mm 0.44" 11.2mm 200 PSI 1.38 MPa 0.08 lbs./ft. 0.12 kg/m 56900904800200 - - -
20025553 20025735 - 1/4" 6.4mm 0.50" 12.7mm 200 PSI 1.38 MPa 0.09 lbs./ft. 0.13 kg/m 56900906400200 56901106400200 56954706400200 -
- 20025748 - 5/16" 7.9mm 0.58" 14.7mm 200 PSI 1.38 MPa 0.12 lbs./ft. 0.18 kg/m 56900907900200 56901107900200 56954707900200 -
20025572 20025750 - 3/8" 9.5mm 0.67" 17.0mm 200 PSI 1.38 MPa 0.15 lbs./ft. 0.22 kg/m 56900909500200 56901109500200 - 56903809500200
20025591 20025773 20026921 1/2" 12.7mm 0.81" 20.6mm 200 PSI 1.38 MPa 0.20 lbs./ft. 0.30 kg/m 56900912700200 56901112700200 56954712700200 56903812700200
20025610 20025787 20026923 5/8" 15.9mm 0.97" 24.6mm 200 PSI 1.38 MPa 0.27 lbs./ft. 0.40 kg/m 56900915900200 56901115900200 56954715900200 -
20025619 20025799 20026925 3/4" 19.1mm 1.12" 28.5mm 200 PSI 1.38 MPa 0.34 lbs./ft. 0.51 kg/m 56900919100200 56901119100200 56954719100200 56903819100200
20025714 20025966 - 1" 25.4mm 1.44" 36.8mm 200 PSI 1.38 MPa 0.54 lbs./ft. 0.80 kg/m 56901025400200 56901225400200 56954725400200 56903825400200
20025649 20025826 - 1-1/4" 31.8mm 1.73" 44.0mm 200 PSI 1.38 MPa 0.75 lbs./ft. 1.12 kg/m 56900931800200 56901131800200 - 56903831800200
20025655 20025834 - 1-1/2" 38.1mm 1.98" 50.3mm 200 PSI 1.38 MPa 0.68 lbs./ft. 1.28 kg/m 56900938100200 56901138100200 - 56903838100200
20022897 20022939 - 2" 50.8mm 2.50" 63.5mm 200 PSI 1.38 MPa 1.16 lbs./ft. 1.73 kg/m 53603506400300 53604006400300 - -
Coupled Lengths
Red
Part Number		 Coupling Type Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Red
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20129541 1/4" Male NPT x 1/4" Male NPT 1/4" 6.4mm 0.50" 12.7mm 200 PSI 1.38 MPa 25ft 0.09 lbs./ft. 0.13 kg/m 56901106412501
20132830 1/4" Male NPT x 1/4" Male NPT 1/4" 6.4mm 0.50" 12.7mm 200 PSI 1.38 MPa 50ft 0.09 lbs./ft. 0.13 kg/m 56901106453301
20129680 1/4" Male NPT x 1/4" Male NPT 3/8" 9.5mm 0.67" 17.0mm 200 PSI 1.38 MPa 25ft 0.15 lbs./ft. 0.22 kg/m 56901109522501
20132831 1/4" Male NPT x 1/4" Male NPT 3/8" 9.5mm 0.67" 17.0mm 200 PSI 1.38 MPa 50ft 0.15 lbs./ft. 0.22 kg/m 56901109553301

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
